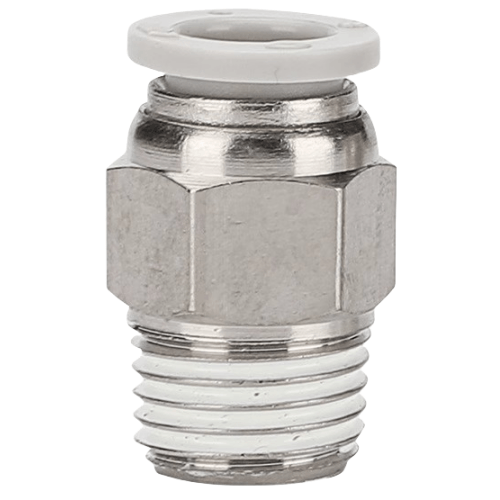

Airtac X-APC Threaded Straight Connector X-APC10M20
$4.20
Regular price
$11.70
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC10M20
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC10M20 Threaded Straight Fitting Technical Details
- Model: X-APC10M20
- Type: Metric thread straight connector (non-adjustable)
- Thread specification: M20×1.5 (male thread both ends)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-ring
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃
- Hex size: 24mm wrench flat
- Surface treatment: Electro-galvanized + chromate passivation
- Weight: 78g ±2g
- Dimensions: Ø20mm × 40mm(L)
- Thread tolerance: 6g/6H per ISO 965-1
- Vibration resistance: ≤10Hz @ 2.5mm amplitude
Precision-machined pneumatic connector featuring double-sealing structure with primary metal-to-metal sealing and secondary elastomer backup. The reverse-angle thread design prevents loosening under vibration. Compatible with ISO 1179-1 standard fittings.
Common Applications:
- Pneumatic cylinder port extensions
- Modular pneumatic circuit assembly
- Vacuum system manifold connections
- Industrial robot tooling interfaces
- Compressed air distribution blocks
Installation guidance:
Apply thread sealant only on male threads (PTFE tape recommended).
Tighten to 14-18 N·m torque using backup wrench on hex flats.
Perform pressure test at 1.75 MPa for leakage check.
| Property | Property Value |
|---|---|
| sku | X-APC10M20 |
