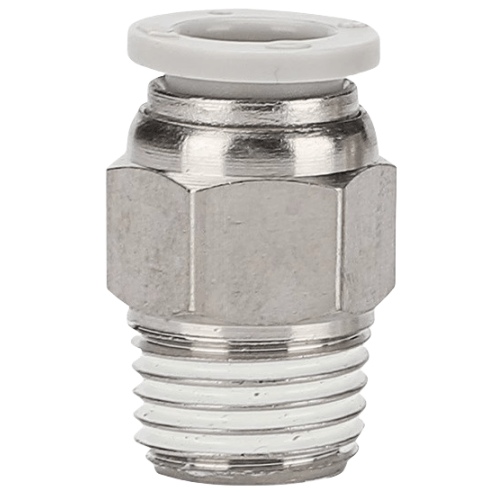

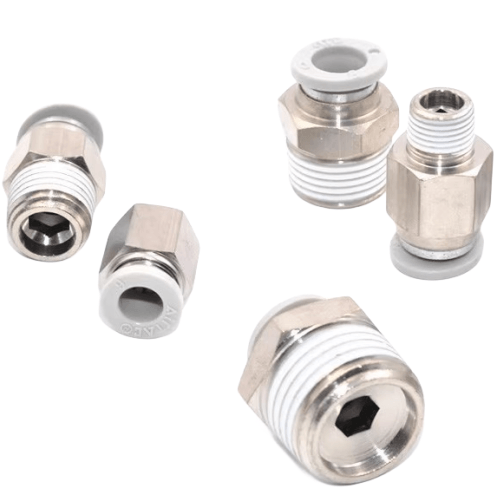

Airtac X-APC Threaded Straight Connector X-APC1202
AirTAC X-APC1202 Threaded Straight Connector Technical Details
- Model: X-APC1202
- Type: Metric thread straight-through connector
- Thread specification: M5×0.8 male thread (both ends)
- Material: Brass with nickel plating (base), NBR seals
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Tube compatibility: 4mm OD polyurethane/nylon tubing
- Surface hardness: HV200-250 (nickel layer)
- Corrosion resistance: 96hrs neutral salt spray test passed
- Weight: 14.2g ±0.5g
- Dimensions: 20mm(L) × 8mm(Dia) × 8mm(Dia)
- Compliance: RoHS 2.0 compliant
Precision-machined pneumatic connector featuring leak-proof double O-ring design (NBR material) and corrosion-resistant nickel coating. The 360° rotatable body enables flexible tubing alignment without stress deformation. Rated for 500,000+ insertion cycles with <0.01ml/min leakage at 0.5MPa pressure.
- PCB handling robot pneumatic gripper circuits
- Medical device pneumatic control systems
- Food packaging machine air line connections
- Semiconductor cleanroom equipment
- Laboratory analytical instrument gas paths
Installation protocol:
Apply thread sealant (PTFE tape or LOCTITE 577) on male threads.
Tighten to 1.2-1.5N·m torque using backup wrench. Avoid overtightening
which may compress O-rings beyond 25% deformation limit.
| Property | Property Value |
|---|---|
| sku | X-APC1202 |
