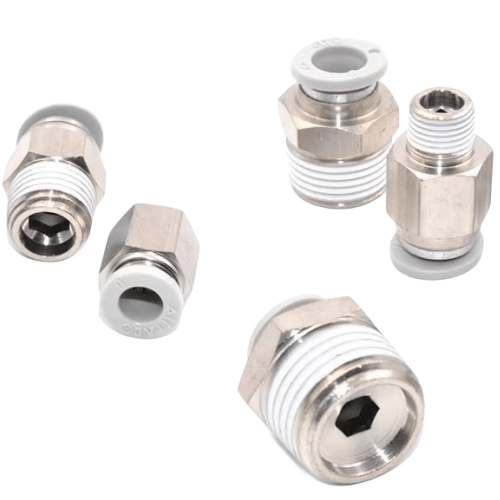

Airtac X-APC Threaded Straight Connector X-APC1203
AirTAC X-APC1203 Threaded Straight Fitting Technical Details
- Model: X-APC1203
- Type: Pneumatic thread-to-tube straight connector
- Thread standard: Metric (M) / G (BSPP) options
- Primary thread size: M5×0.8 (male) / G1/8 (optional)
- Tube OD compatibility: 4mm / 6mm / 8mm (customizable)
- Material: Nickel-plated brass (standard), 316SS available
- Surface treatment: Electrostatic epoxy coating (black)
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: HNBR (standard), FKM/Viton optional
- Weight: 18.5g ±0.3g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Hex)
- Fluid compatibility: Air, inert gases, vacuum
- Certification: RoHS compliant, ISO 9001:2015
High-flow pneumatic connector with precision-machined threads and leak-proof design. Features 360° rotatable collar for easy tube alignment during installation. The hex body allows secure wrench tightening (recommended torque: 1.2-1.5 N·m). Internal flow path optimized for minimal pressure drop (ΔP < 0.02 MPa @ 0.5 MPa).
- Modular pneumatic circuit assembly
- PLC-controlled automation equipment
- Packaging machine air line distribution
- Robotic end effector connections
- Compressed air instrumentation systems
Installation protocol:
Apply thread sealant (PTFE tape or liquid) to male threads before assembly.
Avoid overtightening - use torque wrench for critical applications.
Maximum angular misalignment tolerance: 3°.
