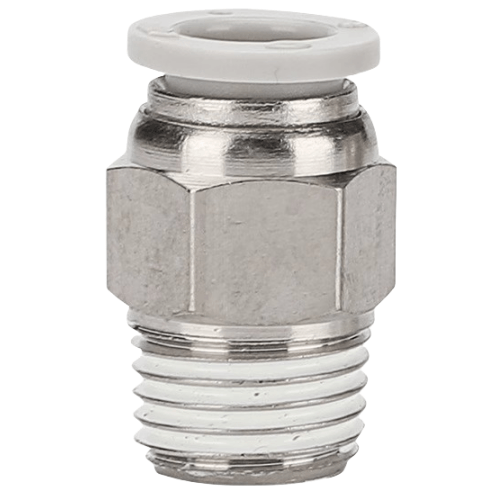

Airtac X-APC Threaded Straight Connector X-APC12M12
$4.15
Regular price
$11.65
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC12M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC12M12 Threaded Straight Fitting Detailed Specifications
- Model: X-APC12M12
- Type: Metric threaded straight connector (male-to-male)
- Thread standard: M12×1.5 (dual-end external thread)
- Material: Nickel-plated brass (CuZn39Pb3)
- Seal type: Integrated O-ring (NBR/FKM optional)
- Pressure rating: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: ≥HV200
- Tightening torque: 8-10 N·m (dry installation)
- Weight: 48g ±2g
- Dimensions: 40mm(L) × 12mm(Diameter) × 12mm(Thread length)
- Corrosion resistance: 96hrs salt spray test passed
- Fluid compatibility: Air, inert gases (non-lubricated)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined metric pneumatic connector featuring dual anti-rotation flats for tool-assisted installation. The electroless nickel plating provides enhanced corrosion protection in humid environments. Sealing performance maintained through 50,000+ pressure cycles in lab tests.
Primary Applications:
- Modular pneumatic circuit assembly in robotics
- Sensor mounting brackets with integrated air supply
- Compact valve manifolds requiring space-saving connections
- Automated packaging line air blow systems
- Medical device pneumatic control interfaces
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (counter-clockwise winding).
Avoid overtightening - stop rotation when 1.5mm gap remains between fittings,
then perform final ¼ turn with calibrated torque wrench.
Not recommended for:
Hydraulic systems, pulsation-heavy environments above 3Hz,
or media containing silicone oil (causes seal swelling).
| Property | Property Value |
|---|---|
| sku | X-APC12M12 |
