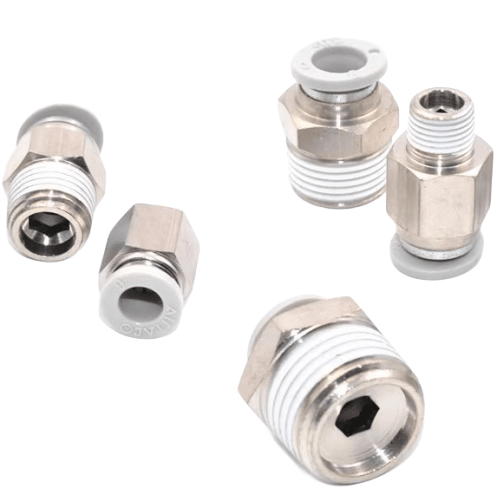

Airtac X-APC Threaded Straight Connector X-APC1601
AirTAC X-APC1601 Threaded Straight Connector Technical Details
- Model: X-APC1601
- Series: X-APC (High Flow Compact Design)
- Thread type: G1/8 (BSPP) female threads both ends
- Alternative thread options: NPT1/8 available on request
- Material: Brass (CuZn39Pb3) with nickel-plated surface
- Seal material: NBR (Nitrile) O-rings
- Max working pressure: 1.6 MPa (232 psi)
- Proof pressure: 2.4 MPa
- Burst pressure: ≥4.8 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow rate (Cv value): 0.25
- Weight: 18.5g ±0.5g
- Dimensions: 30mm(L) × 10mm(W) × 10mm(H)
- Surface roughness: Ra ≤1.6μm
- Compliance: RoHS 2.0 compliant
- Thread engagement depth: 7.5mm minimum
Precision-machined straight connector featuring dual-port sealing with embedded O-rings for leak-free transitions in pneumatic systems. The hexagonal body design allows 360° tool access for installation in confined spaces. Nickel plating provides corrosion resistance in humid environments (salt spray tested to 48hrs neutral salt spray).
- Branch line connections in modular pneumatic manifolds
- Sensor/valve port extensions in robotics
- Compressed air tool air inlet adapters
- Medical gas line test fittings
- Vacuum system instrumentation ports
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (for BSPP connections only).
Tighten to 8-10 N·m torque using 14mm wrench. Avoid overtightening which may
compress O-rings beyond 25% deformation limit. Test at 0.8 MPa for 3 minutes
post-installation.
| Property | Property Value |
|---|---|
| sku | X-APC1601 |
