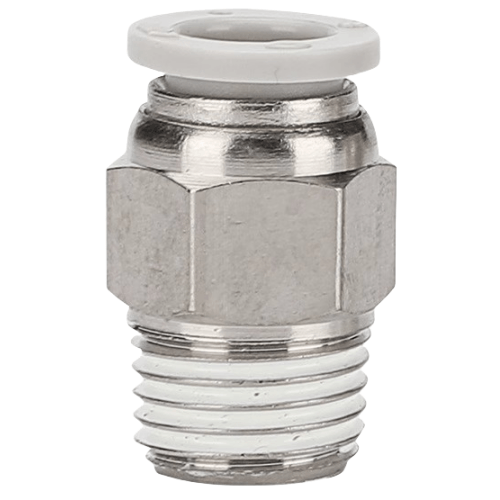

Airtac X-APC Threaded Straight Connector X-APC1602
AirTAC X-APC1602 Threaded Straight Fitting Technical Details
- Model: X-APC1602
- Type: Male-Metal threaded straight connector
- Thread standard: Metric (M5×0.8 female thread × PT1/8 male thread)
- Material: C3604 brass with nickel plating
- Surface hardness: ≥HV200
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -5℃ to 100℃ (non-freezing)
- Seal type: Integrated O-ring (NBR material)
- Leakage rate: ≤3×10⁻² Pa·m³/s (helium test)
- Vibration resistance: 10-2000Hz, 5G acceleration
- Weight: 8.5±0.3g
- Dimensions: 16mm(OD) × 22mm(L) × 16mm(H)
- Certification: RoHS compliant, REACH SVHC-free
Precision-machined pneumatic connector featuring dual-sealing structure with metal-to-metal primary seal and secondary elastomer backup. Anti-vibration design maintains connection integrity in high-shock environments. Nickel plating provides corrosion resistance against water vapor and mild chemicals.
- Pneumatic circuit branch line connections
- Sensor/valve manifold interfaces
- Robotic end effector air supply lines
- Medical device pneumatic systems
- Food processing equipment (lubricant-free version available)
Mounting guidance:
Apply 0.5-0.8Nm torque during installation. Use thread sealant only on male PT threads,
never on metric female ports. Replace O-ring every 5,000 connection cycles in high-use scenarios.
| Property | Property Value |
|---|---|
| sku | X-APC1602 |
