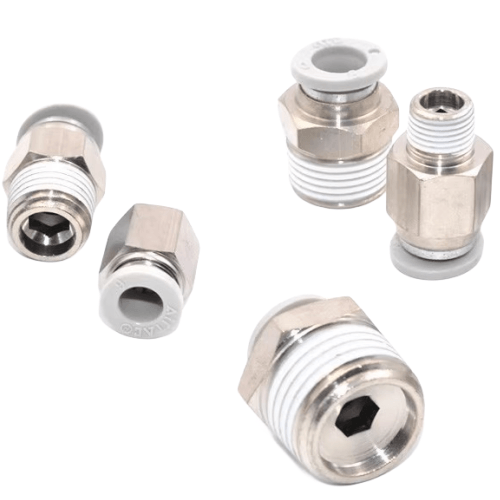

Airtac X-APC Threaded Straight Connector X-APC1603
AirTAC X-APC1603 Threaded Straight Connector Specifications
- Model: X-APC1603
- Type: Threaded straight through fitting (male-to-male)
- Thread standard: Metric (M5×0.8 internal thread both ends)
- Material: Nickel-plated brass (C3604)
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃ (continuous use)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Surface roughness: Ra≤1.6μm (sealing surfaces)
- Weight: 18±1g
- Dimensions: 30mm(L) × 10mm(Dia) × M5×0.8 (both ends)
- Compliance: RoHS 2011/65/EU
Precision-machined pneumatic connector featuring dual-purpose sealing with both metal-to-metal compression and elastomer O-ring backup. The electroless nickel plating provides corrosion resistance in humid environments while maintaining electrical conductivity for grounding applications. Designed for zero-leak performance in dynamic vibration conditions.
- Pneumatic cylinder port extenders
- Sensor mounting brackets in automation lines
- Modular pneumatic manifold systems
- Vacuum circuit junctions
- Compressed air instrumentation links
Installation note:
Apply 2-3 wraps of PTFE tape clockwise on male threads. Use torque-controlled tightening (recommended 0.8-1.2 N·m). Avoid cross-threading by hand-starting both ends before final tightening.
- AirTAC APC series push-to-connect fittings
- Metric thread adapters (M5 to G1/8 conversions)
- Anti-vibration thread lock washers (PN: AVL-5)
