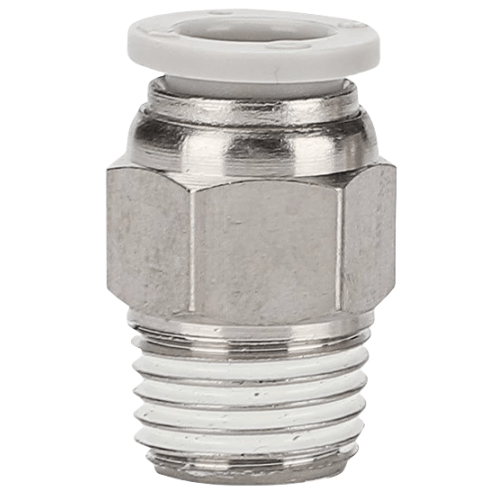

Airtac X-APC Threaded Straight Connector X-APC1606
AirTAC X-APC1606 Threaded Straight Connector Specifications
- Model: X-APC1606
- Type: Metric thread straight-through fitting
- Material: Nickel-plated brass (base), NBR sealing ring
- Thread standard: M16×1.5 (external) / M6×1.0 (internal)
- Max working pressure: 1.6 MPa (232 psi)
- Burst pressure: ≥6.4 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow coefficient (Cv): 0.15
- Weight: 28±2g (0.06 lbs)
- Dimensions: 42mm(L) × 16mm(OD) × 16mm(ID)
- Surface treatment: Electroless nickel plating (5-8μm)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant, ISO 1179-1 standard
High-pressure bidirectional connector with precision-machined tapered threads for leak-free transitions between metric pneumatic components. Features dual O-ring grooves and anti-vibration locking design. Compatible with air, water, and inert gases (N₂/CO₂). Includes built-in particle deflection ridges to prevent seal contamination.
- Pneumatic cylinder port adapters
- Compressed air distribution manifolds
- Vacuum system plumbing conversions
- Hydraulic test bench connections
- Robotic end-effector tooling interfaces
Installation protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps). Torque to 12-15 N·m using flank-contact wrench.
Pressure test at 1.1× system pressure for 15min post-installation.
