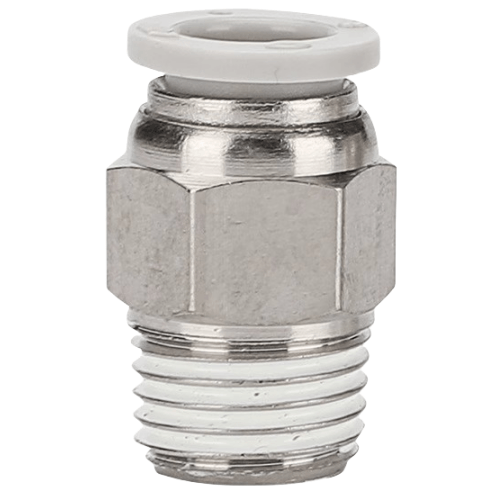

Airtac X-APC Threaded Straight Connector X-APC16M20
AirTAC X-APC16M20 Threaded Straight Connector Specifications
- Model: X-APC16M20
- Type: Metric threaded straight-through connector
- Thread specification: M20×1.5 (external thread both ends)
- Material: Brass with nickel plating (CuZn39Pb3)
- Seal material: NBR (Nitrile rubber)
- Max working pressure: 1.5 MPa (15 bar)
- Temperature range: -20℃ to 80℃ (NBR compatible)
- Surface hardness: HV0.3 130-250 (nickel coating)
- Thread tolerance: 6g/6H per ISO 965-1
- Weight: 50g ±2g
- Dimensions: 60mm(L) × 30mm(W) × 30mm(H)
- Flow coefficient (Cv): 3.2
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
Heavy-duty pneumatic connector featuring dual-layer nickel plating for enhanced corrosion resistance in humid environments. Precision-machined threads ensure leak-free connections with 360° rotational alignment capability. Internal flow path optimized for minimal pressure drop (ΔP <0.02MPa at 1MPa). Compatible with ISO 1179-2 and DIN 3859 standards.
- Pneumatic cylinder port extensions
- Modular assembly in automation equipment
- Air preparation unit plumbing
- Sensor mounting interfaces
- Pneumatic tool air supply lines
- Vacuum system component connections
Installation guidelines:
Apply PTFE tape clockwise on male threads (2-3 wraps). Use 35-45N·m torque with anti-seize compound in aluminum applications. Avoid overtightening beyond 60N·m to prevent thread deformation.
- X-AFC series flange connectors
- X-APM metric adapters
- X-AQC quick coupling systems
- Standard M20x1.5 nuts/washers
| Property | Property Value |
|---|---|
| sku | X-APC16M20 |
