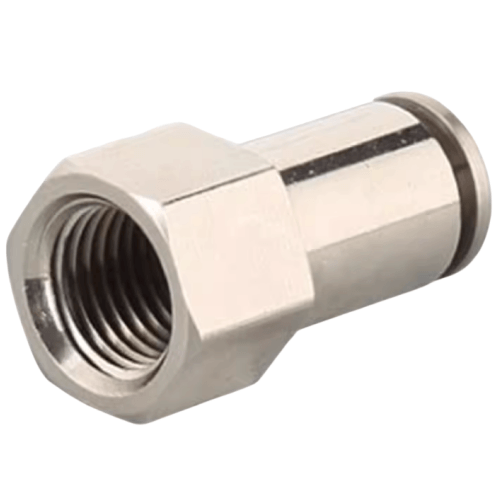

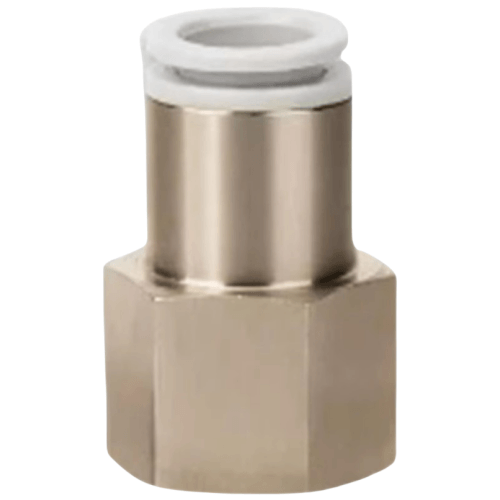

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT802
AirTAC X-APCFT802 Full Brass Female Thread Straight Fitting Technical Details
- Model: X-APCFT802
- Type: Straight through connector (female thread both ends)
- Material: C3604 free-cutting brass (lead-free compliant)
- Thread Standard: Metric (M5×0.8 female thread)
- Surface Treatment: Electro-nickel plated (3-5μm thickness)
- Pressure Rating: 1.5 MPa max (15 bar)
- Burst Pressure: ≥4.5 MPa
- Temperature Range: -20℃ to +120℃ (continuous use)
- Seal Type: Metal-to-metal sealing (no O-ring required)
- Thread Engagement: 5 full turns minimum
- Weight: 38g ±2g
- Dimensions: 80mm(L) × 16mm(W) × 16mm(H)
- Fluid Compatibility: Air, inert gases, water (non-corrosive media)
- Vibration Resistance: 10-2000Hz, 10G acceleration
Precision-machined brass fitting with electroless nickel coating for corrosion resistance in humid environments. Features 60° cone seat design ensuring leak-free connections without thread sealants. The internal bore maintains laminar flow with 4.5mm inner diameter and Ra0.8μm surface finish.
- Pneumatic tool air line distribution systems
- Compressed air manifolds in packaging machinery
- Vacuum circuit junctions for automation equipment
- Coolant line connections in CNC machining centers
- Laboratory gas chromatography setups
Installation guide:
Use 12-15 N·m torque with parallel thread engagement.
For permanent installations, apply PTFE tape 1.5 turns clockwise on male threads.
Avoid brass-to-aluminum direct contact in saltwater environments.
