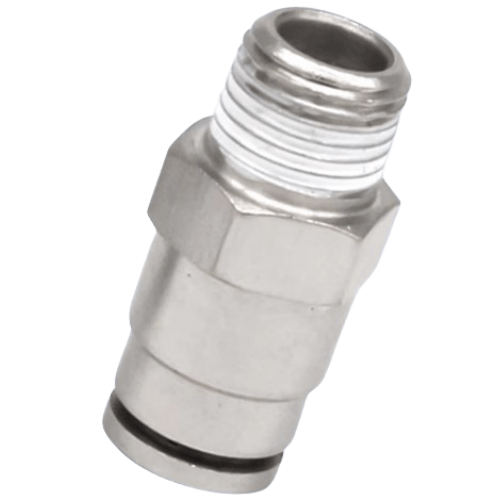

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1002
AirTAC X-APCT1002 Full Copper Straight Threaded Fitting Specifications
- Model: X-APCT1002
- Material: C3604 Free-cutting brass (lead-free compliant)
- Thread type: Parallel thread (BSPP/G)
- Thread size: 1/8" (R1/8, G1/8 equivalent)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroplated nickel coating (3-5μm)
- Seal material: NBR O-ring (70±5 Shore A)
- Weight: 28±2g
- Dimensions: 25mm(L) × 8mm(Dia) × 8mm(Thread OD)
- Thread engagement depth: 9mm
- Flow coefficient (Cv): 0.22
- Certification: RoHS 2.0 compliant
Precision-machined brass pneumatic connector with corrosion-resistant nickel plating, designed for leak-free connections in high-vibration environments. Features a 360° rotatable collar for easy installation alignment and maintenance. Compatible with air, water, and inert gases when used with proper seals.
- Pneumatic circuit branching in automation equipment
- Compressed air distribution in automotive assembly lines
- Coolant line connections for CNC machines
- Vacuum system plumbing in packaging machinery
- Instrumentation gas lines in semiconductor fabs
Installation notes:
Apply 0.8-1.2 N·m torque during assembly. Use thread sealant only on male threads.
Replace O-ring every 5 years or 10,000 pressure cycles. Avoid brass-to-brass direct threading.
| Property | Property Value |
|---|---|
| sku | X-APCT1002 |
