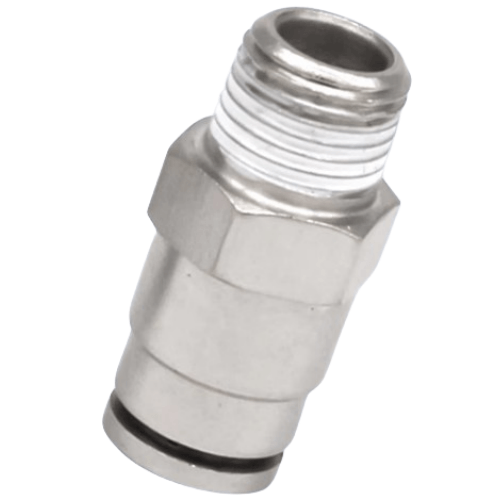

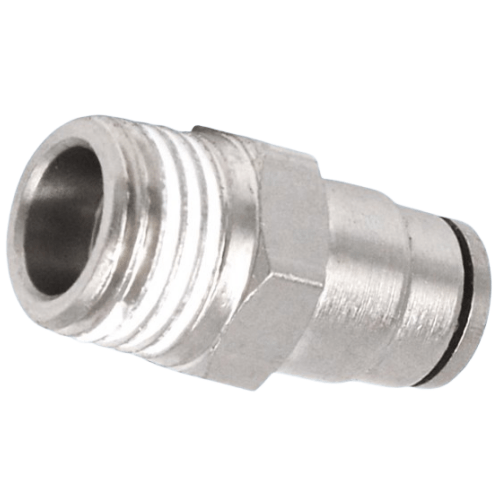

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1203
$5.80
Regular price
$13.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCT1203
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCT1203 Full Copper Straight Threaded Connector Specifications
- Model: X-APCT1203
- Material: Lead-free brass (RoHS compliant)
- Thread Standard: PT/NPT/G threads available
- Nominal Size: 1/8" (DN6)
- Effective Thread Length: 9.5±0.5mm
- Max Working Pressure: 1.5 MPa (15 bar)
- Proof Pressure: 3.0 MPa
- Burst Pressure: ≥6.0 MPa
- Temperature Range: -20℃ to 120℃
- Surface Finish: Electroplated nickel (3-5μm thickness)
- Weight: 24.5±0.8g
- Dimensions: 25mm(L) × 12mm(OD) × 12mm(ID)
- Thread Tolerance: ISO 1179-1 Class B
- Sealing Method: Metal-to-metal seal with optional PTFE tape
- Certifications: ISO 8434-1, DIN 2353
Precision-machined straight-through pneumatic connector featuring corrosion-resistant nickel plating and dual-compatibility threading. The hexagonal body design allows 360° tool access in confined spaces. Compatible with air, water, and inert gas systems.
Typical Applications:
- Pneumatic cylinder port conversions
- Compressed air distribution manifolds
- Vacuum system tubing interfaces
- Medical gas line adapters
- CNC machine tool pneumatic circuits
- Hydraulic test bench connections
Installation note:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using backup wrench on hex flats.
Pressure test required before full operation.
| Property | Property Value |
|---|---|
| sku | X-APCT1203 |
