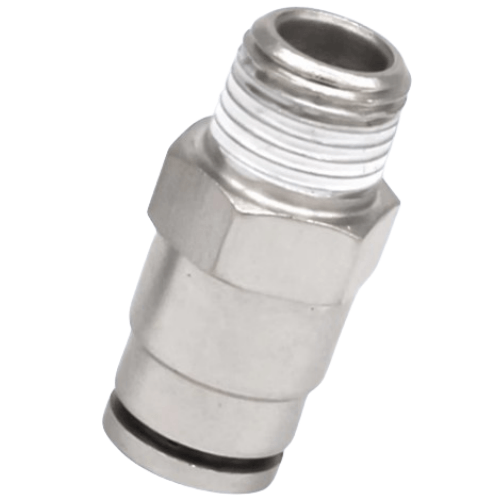

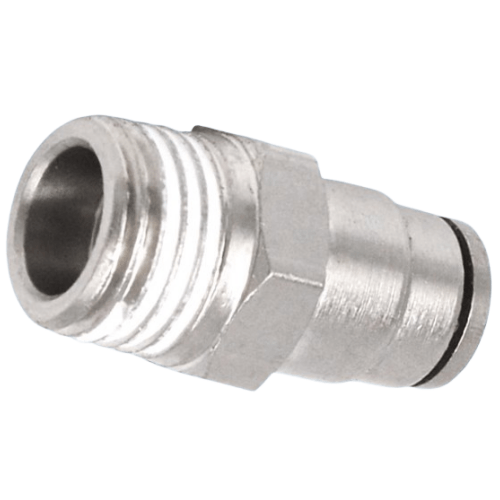

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1204
AirTAC X-APCT1204 Full Copper Threaded Straight Connector Specifications
- Model: X-APCT1204
- Type: Straight through threaded connector (male to male)
- Material: C3604 lead-free brass (RoHS compliant)
- Thread standard: PT (BSPP) / NPT / G available
- Thread size: PT1/8 (equivalent to R1/8, G1/8)
- Max working pressure: 1.0 MPa (145 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Temperature range: -20℃ to 120℃ (seal dependent)
- Seal material: Standard NBR (-20℃~80℃) / Optional FKM (-20℃~120℃)
- Surface treatment: Electro-polished nickel plating (3-5μm)
- Weight: 18.5g ±0.5g
- Dimensions: 25mm(L) × 12mm(W) × 12mm(H)
- Torque specification: 15-20 N·m installation torque
- Flow coefficient (Cv): 0.85
- Leakage rate: ≤0.1 mL/min @ 0.5 MPa
Precision-machined brass connector featuring triple-seal design (thread+seal+metal contact) for leak-proof performance in high-vibration environments. The hexagonal center allows standard wrench operation, while the recessed port design prevents thread damage during installation. Compatible with air, water, and non-corrosive gases.
- Pneumatic tool air supply lines
- Coolant line connections in CNC machines
- Vacuum system interfaces
- Hydraulic test bench plumbing
- Beverage dispenser fluid connections
- Semiconductor gas delivery systems
Installation protocol:
Apply thread sealant (PTFE tape or liquid sealant) to male threads only.
Hand-tighten plus 1.25-1.75 turns with wrench. Avoid overtightening -
use torque wrench for critical applications. Inspect seals every 2,000
operating hours in high-cycle systems.
| Property | Property Value |
|---|---|
| sku | X-APCT1204 |
