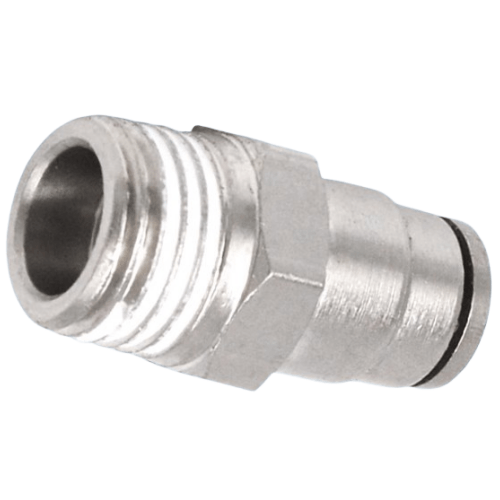

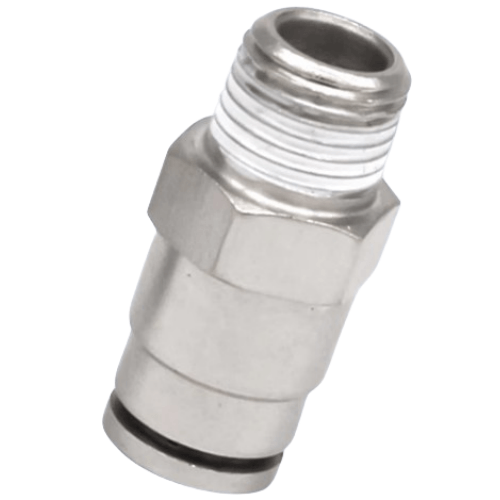

Airtac X-APCT Full Copper Straight Thread Connector X-APCT4M5
AirTAC X-APCT4M5 Full Brass Threaded Straight Connector Specifications
- Model: X-APCT4M5
- Thread Type: M5×0.8 male thread (parallel)
- Material: C3604 free-cutting brass (lead content ≤0.09%)
- Surface Treatment: Electrolytic nickel plating (3-5μm thickness)
- Seal Material: NBR O-ring (Shore A 70±5)
- Pressure Rating: 0.05-1.0 MPa
- Temperature Range: -20℃ to 100℃ (continuous use), peak 120℃
- Flow Coefficient (Cv): 0.12
- Leakage Rate: ≤3 bubbles/min (ISO 6952 test standard)
- Installation Torque: 0.4-0.6 N·m (recommended with thread sealant)
- Weight: 8.2±0.3g
- Dimensions: 15mm(L) × 15mm(W) × 20mm(H) (excluding thread protrusion)
Precision-machined brass connector with dual sealing channels, featuring corrosion-resistant nickel plating and anti-vibration thread design. The 45° angled flow path reduces turbulence, achieving 92% flow efficiency. Compatible with PTFE tape or liquid thread sealants (non-curing type recommended).
- Modular pneumatic circuit assembly
- Sensor mounting interfaces in automation cells
- Medical gas line distribution blocks
- Robotic end effector pneumatic connections
- Compressed air diagnostics ports
Installation protocol:
Apply sealant to male threads 1.5 pitches from end. Hand-tighten plus 1/4 turn with wrench.
Avoid overtightening - maximum 0.8 N·m. Perform pressure test at 1.5× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APCT4M5 |
