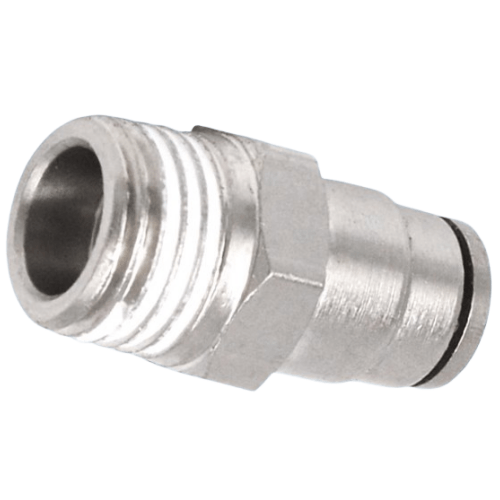

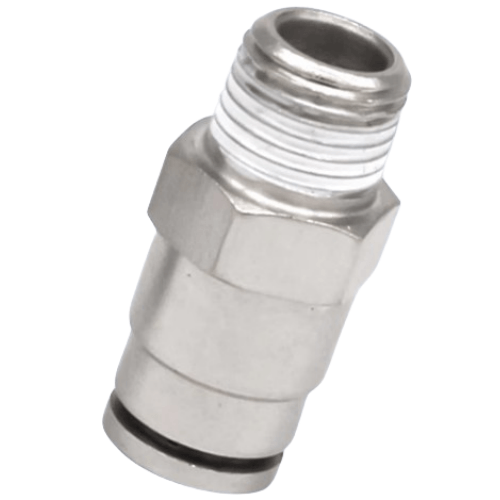

Airtac X-APCT Full Copper Straight Thread Connector X-APCT803
AirTAC X-APCT803 Full Brass Threaded Straight Connector Specifications
- Model: X-APCT803
- Material: Lead-free brass (RoHS compliant)
- Thread type: Parallel (straight) thread
- Port configuration: Dual female threads
- Thread standards: M5×0.8 & PT1/8 (BSPP)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroplated nickel (5-8μm thickness)
- Seal material: NBR O-ring (FDA compliant option available)
- Weight: 24.5g ±0.3g
- Dimensions: 25mm(L) × 15mm(W) × 15mm(H)
- Torque specification: 1.2-1.5 N·m (M5), 1.8-2.2 N·m (PT1/8)
- Flow coefficient (Cv): 0.15
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined brass connector featuring dual sealing surfaces (thread+O-ring) for leak-free performance in dynamic systems. The electroless nickel plating provides superior corrosion resistance, while the through-hole design maintains laminar flow with minimal pressure drop (ΔP<0.02MPa @1MPa).
- Pneumatic valve manifold assemblies
- CNC machine tool air supply lines
- Semiconductor vacuum line connections
- Food-grade pneumatic systems (with FDA seals)
- Hydraulic test bench instrumentation
- Robotic end-effector pneumatic networks
Installation protocol:
Apply PTFE tape clockwise (2.5 wraps) on male threads before assembly.
Use twin wrenches for tightening - hold base fitting with 17mm wrench while
tightening nut with 12mm wrench to prevent torsion stress.
⚠️ Avoid galvanic corrosion: Do not connect directly to aluminum components without dielectric insulation. Recommended storage humidity: <65% RH.
| Property | Property Value |
|---|---|
| sku | X-APCT803 |
