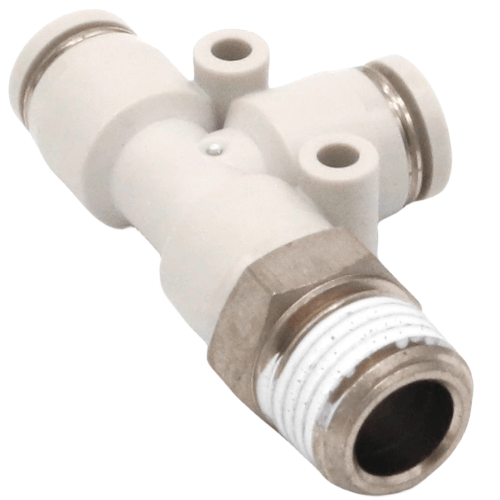

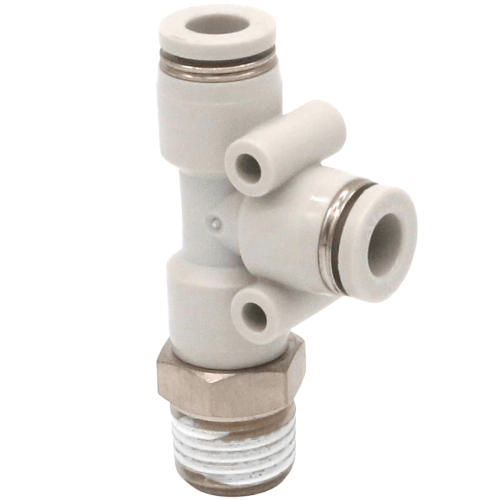

Airtac X-APD Connector - T-Type Threaded Tee X-APD10M12
AirTAC X-APD10M12 T-Type Threaded Tee Fitting Specifications
- Model: X-APD10M12
- Type: T-shaped pneumatic tee connector
- Thread standard: Metric fine thread (M12×1.25)
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized (black)
- Pressure range: 0.05-1.0 MPa (7-145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: ~25g (0.88 oz)
- Dimensions: 32mm(L) × 32mm(W) × 24mm(H)
- Port configuration: Three M12 female threads at 90° angles
- Seal compatibility: Compatible with NBR/PU seals
- Vibration resistance: ≤10Hz @ 2mm amplitude
Precision-machined tee connector with military-standard anodization for corrosion resistance. Features a compact T-shaped design enabling space-saving pneumatic circuit branching. The M12×1.25 fine thread ensures leak-proof connections in high-vibration environments. Includes integrated O-ring grooves for positive sealing.
- Modular pneumatic system manifolds
- Industrial robot end-effector air distribution
- CNC machine tool pneumatic control circuits
- Packaging line actuator networks
- Automotive assembly jig air supply systems
Installation protocol:
Apply thread sealant tape (PTFE) or liquid sealant to male threads.
Tighten to 12-15 N·m torque using crowfoot wrench.
Avoid overtightening to prevent port deformation.
Perform pressure test at 1.5× operating pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APD10M12 |
