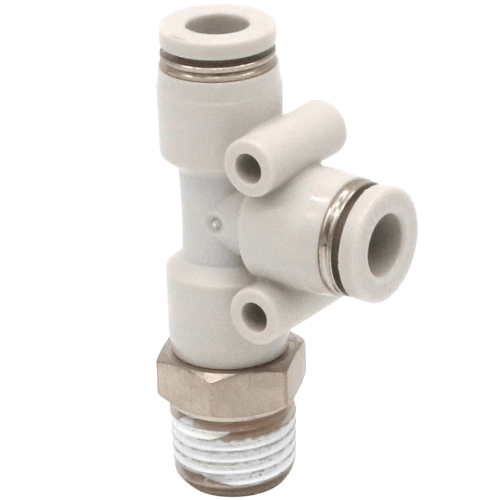

Airtac X-APD Connector - T-Type Threaded Tee X-APD1203
$5.44
Regular price
$12.94
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APD1203
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APD1203 T-Port Tee Fitting Technical Details
- Model: X-APD1203
- Type: T-shaped pneumatic tee connector
- Thread standard: T-thread (BSPT/Rc)
- Material: Brass with nickel-plated surface
- Port configuration: 3-way (1 input, 2 outputs)
- Thread size: 1/8" (G1/8 equivalent)
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20°C to 80°C (-4°F to 176°F)
- Seal material: NBR (Nitrile rubber)
- Installation torque: 1.5-2.0 Nm
- Weight: 25g ±2g
- Dimensions: 30mm(L) × 18mm(W) × 18mm(H)
- Surface roughness: Ra ≤3.2μm
- Compliance: RoHS, REACH
- Package quantity: 10pcs/box (individual bubble wrap)
Precision-machined brass tee connector featuring tapered pipe threads for leak-free branching in pneumatic systems. The nickel plating provides corrosion resistance in humid environments while maintaining smooth airflow. Designed with a compact footprint for tight assembly spaces.
Common Applications:
- Branching pneumatic circuits in automation equipment
- Air pressure gauge manifold connections
- Compressed air distribution in CNC machines
- Vacuum system plumbing in packaging machinery
- Laboratory air supply networks
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten).
Align ports before final torque application. Maximum recommended
vibration: 4.5G @ 10-2000Hz. Compatible with ISO 228-1 standard fittings.
Fluid compatibility:
Dry air, inert gases. Not recommended for steam, aggressive chemicals,
or particulate-laden media without upstream filtration (40μm minimum).
| Property | Property Value |
|---|---|
| sku | X-APD1203 |
