Airtac X-APD Connector - T-Type Threaded Tee X-APD401
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APD401
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

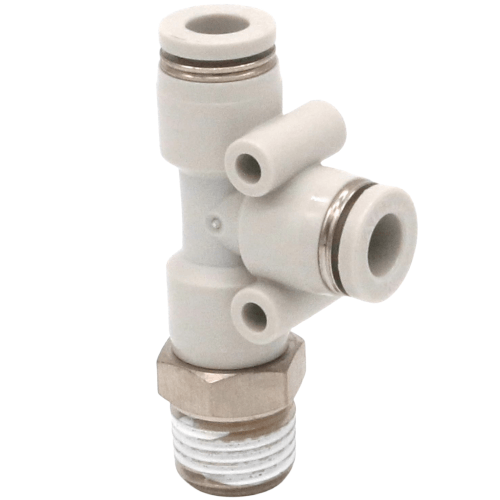

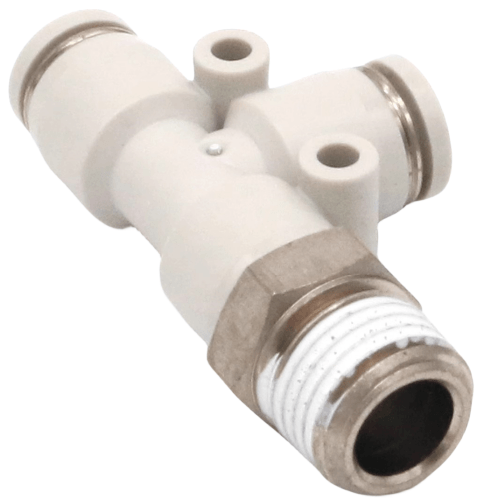

AirTAC X-APD401 T-Port Tee Threaded Fitting Technical Details
- Model: X-APD401
- Type: T-shaped pneumatic tee connector
- Thread Standard: BSPP (G-thread) / NPT optional
- Port Configuration: 3 ports (1 inlet, 2 outlets at 90°)
- Port Size: 1/8" (PT1/8)
- Material: Lead-free brass (C37700) with nickel plating
- Pressure Range: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Seal Material: HNBR (Highly saturated nitrile) O-rings
- Surface Finish: Electroless nickel plating (5-8μm thickness)
- Torque Resistance: ≤3 N·m installation torque
- Weight: 18.5g ±0.5g
- Dimensions: 20mm (L) × 22mm (W) × 22mm (H)
- Flow Coefficient (Cv): 0.45
- Certifications: RoHS compliant, REACH SVHC-free
Precision-machined tee connector with triple sealing structure (thread+taper+O-ring) for leak-free performance. Features anti-vibration grooves and directional flow arrows. Corrosion-resistant for humid environments. Compatible with air, inert gases, and vacuum systems.
Typical Applications:
- Branching pneumatic circuits in robotic end effectors
- Modular manifold systems for packaging machinery
- Vacuum distribution in semiconductor handling
- Medical device pneumatic control panels
- Compressed air networks in automotive assembly
Installation protocol:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten to 1.2-1.8 N·m torque using backup wrench on hex flats.
Avoid aligning ports vertically downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-APD401 |
