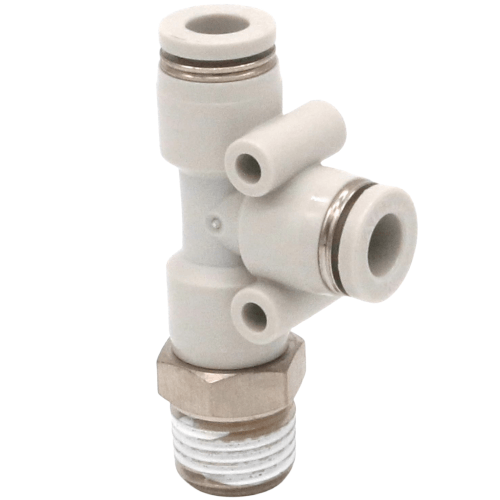

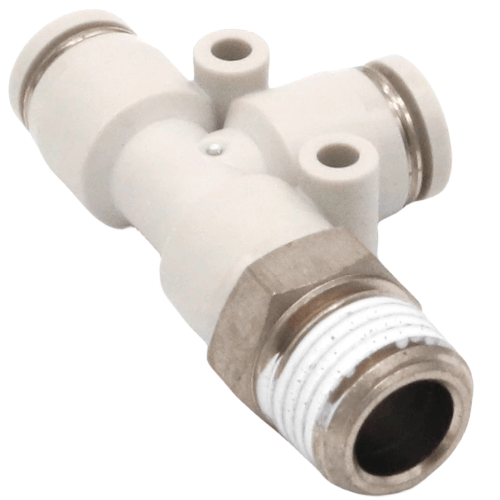

Airtac X-APD Connector - T-Type Threaded Tee X-APD6M8
AirTAC X-APD T-Type Threaded Tee Fitting X-APD6M8 Technical Details
- Model: X-APD6M8
- Type: T-type metric threaded tee connector
- Thread standard: ISO 228 (G-series parallel threads)
- Thread size: M8×1.0 (Male threads on all three ports)
- Material: Lead-free brass CW617N
- Surface treatment: Electroless nickel plating (5-8μm)
- Pressure rating: 1.5 MPa (15 bar) maximum
- Burst pressure: ≥6 MPa
- Temperature range: -20℃ to 120℃ (continuous)
- Weight: 28±2g
- Dimensions: 24mm (L) × 24mm (W) × 24mm (H)
- Flow coefficient (Cv): 0.15
- Seal compatibility: Compatible with air, water, and non-flammable gases
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined brass tee connector designed for compact pneumatic distribution systems. Features triple male threads with leak-resistant parallel thread design and anti-corrosion nickel coating. The symmetrical 90° branch configuration ensures balanced flow distribution, while hexagonal flats enable tool-assisted tightening (recommended torque 12-15N·m).
- Modular pneumatic manifolds in packaging machinery
- Instrumentation air supply networks
- Coolant line distribution in CNC equipment
- Vacuum system junctions for automation cells
- Compressed air splitters in dental chairs
Maintenance tip:
Apply PTFE tape or LOCTITE 577 on threads before installation.
Avoid overtightening - maximum 1.5 rotations after hand-tight.
Inspect seal integrity every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | X-APD6M8 |
