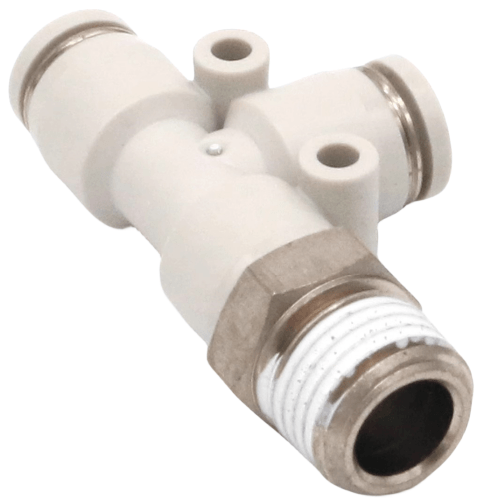

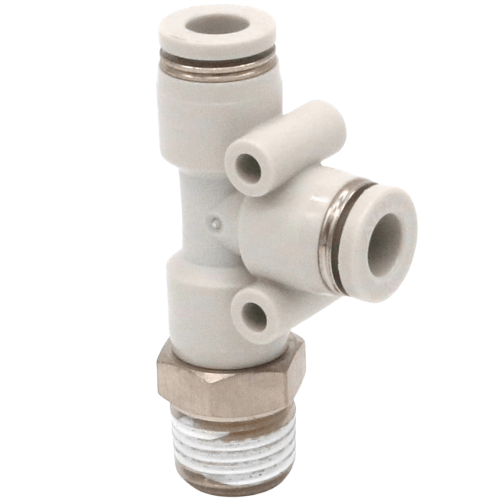

Airtac X-APD Connector - T-Type Threaded Tee X-APD802
$3.79
Regular price
$11.29
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APD802
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APD802 T-Type Threaded Tee Fitting Specifications
- Model: X-APD802
- Type: T-shaped triple port connector
- Thread standard: Metric (M5×0.8) / Optional NPT/PT/BSPP
- Material: Brass with nickel plating (stainless steel optional)
- Operating pressure: 0.05–1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (FKM optional)
- Surface roughness: Ra ≤1.6μm
- Weight: 48±2g
- Dimensions: 25mm(L) × 25mm(W) × 25mm(H)
- Port configuration: 3-way female threads
- Standards compliance: ISO 1179-1, JIS B8381
Precision-machined tee connector with 360° rotatable ports for flexible piping arrangements. Features leak-resistant double O-ring structure and anti-vibration thread design. Electroless nickel plating provides corrosion resistance exceeding 96hrs in salt spray test.
Typical Applications:
- Branch line connections in pneumatic automation systems
- Instrumentation air distribution panels
- Modular pneumatic circuit prototyping
- Vacuum system manifold assemblies
- Medical gas line distribution
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten to 1.2-1.8N·m torque.
Avoid overtightening which may distort O-ring grooves. Compatible with
Ø4-12mm polyurethane/nylon tubing when used with corresponding inserts.
| Property | Property Value |
|---|---|
| sku | X-APD802 |
