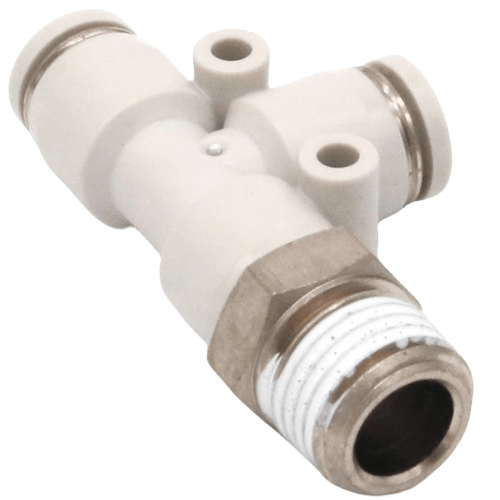

Airtac X-APD Connector - T-Type Threaded Tee X-APD803
$4.15
Regular price
$11.65
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APD803
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APD803 T-Port Tee Fitting Specifications
- Model: X-APD803
- Type: T-shaped pneumatic tee connector
- Thread type: T-thread (BSPP) / Optional NPT
- Port configuration: 3-way equal diameter
- Port size: PT1/8 (G1/8 equivalent)
- Material: Brass with nickel plating (Stainless steel variant available)
- Pressure rating: 0.05–1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile) standard / Optional FKM (Viton)
- Surface treatment: Electrolytic polishing (Ra ≤0.8μm)
- Weight: 48g ±2g
- Dimensions: 25mm (L) × 25mm (W) × 25mm (H)
- Torque resistance: ≤25N·m
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision-machined tee connector with 360° rotatable ports for flexible piping layouts. Features leak-proof tapered thread design and anti-vibration grooves. Compatible with air, inert gases, and vacuum systems. Meets ISO 1179-1 standard for interchangeability.
Typical Applications:
- Branching pneumatic circuits in automation equipment
- Modular pneumatic manifold assemblies
- Compressed air distribution in CNC machines
- Vacuum system junctions for pick-and-place robots
- Instrumentation gas sampling systems
Installation tip:
Apply PTFE tape clockwise on male threads (2-3 wraps max).
Avoid overtightening – recommended torque 12-15N·m.
For vertical installations, position flow arrow upward.
Compatible Accessories:
- X-APD series push-to-connect fittings
- AS series pneumatic tubing (4mm/6mm OD)
- X-SMC quick exhaust valves
| Property | Property Value |
|---|---|
| sku | X-APD803 |
