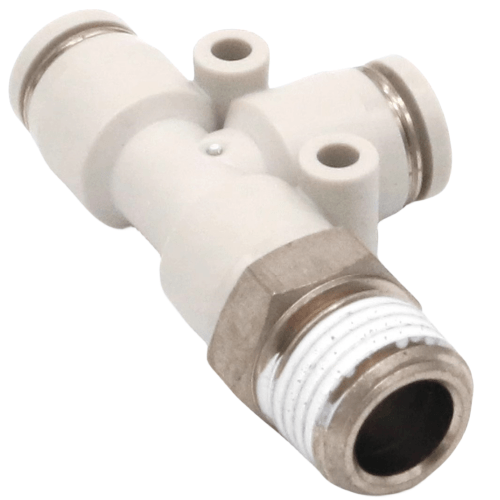

Airtac X-APD Connector - T-Type Threaded Tee X-APD8M8
AirTAC X-APD8M8 T-Port Tee Fitting Technical Details
- Model: X-APD8M8
- Type: T-port tee connector with metric thread
- Thread specification: M8×1.0 (ISO 228-1 compliant)
- Material: Brass (CuZn39Pb3) with nickel-plated surface
- Pressure range: 0.05–1.5 MPa (7–217 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 30g ±2g
- Dimensions: 24mm(L) × 24mm(W) × 24mm(H)
- Seal material: Fluorocarbon rubber (FKM) O-ring
- Surface roughness: Ra ≤1.6μm
- Leakage rate: <0.1 bubble/min under 0.5MPa air pressure
- Certifications: RoHS compliant, CE marked
Precision-engineered brass tee connector featuring triple-ported T-configuration with unified M8 threads, designed for secure branching in compact pneumatic systems. The electroless nickel plating provides enhanced corrosion resistance (96h salt spray tested), while the embedded FKM seal ensures leak-free connections in high-vibration environments.
- Modular pneumatic manifold assemblies
- Robotic end-effector air distribution
- CNC machine tool pneumatic circuits
- Medical device gas line junctions
- Compressed air instrumentation systems
Installation guidelines:
Apply PTFE tape or liquid sealant to male threads (do not over-tighten - recommended torque 2.5–3.5 N·m).
Avoid cross-threading by hand-starting all connections. Compatible with ISO 1179-2 adapters.
| Property | Property Value |
|---|---|
| sku | X-APD8M8 |
