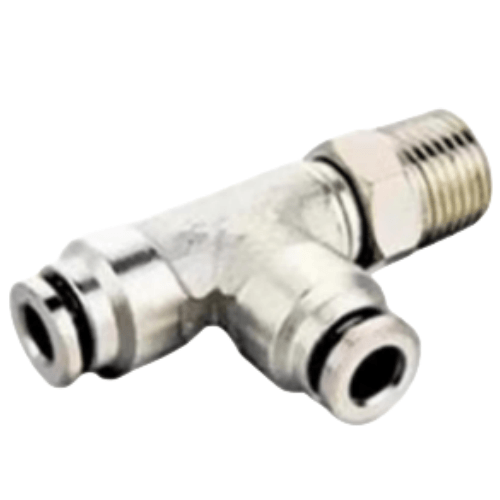

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT1004
AirTAC X-APDT1004 Full Brass Threaded Side Tee Fitting Technical Details
- Model: X-APDT1004
- Type: 3-way side entry tee with female threads
- Thread standard: BSPP (G thread) / NPT optional
- Port size: 1/4" (DN6.5)
- Material: Lead-free brass (CuZn39Pb3) with nickel plating
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -5℃ to 120℃ (23℉ to 248℉)
- Surface roughness: Ra ≤1.6μm at sealing surfaces
- Thread tolerance: ISO 1179 Class B
- Torque resistance: 2.5-3.0 N·m (22-26.5 lb-in)
- Weight: 28.5g ±0.5g
- Dimensions: 32mm(L) × 24mm(W) × 24mm(H)
- Compatibility: Works with PU, nylon, and rubber tubing (4-6mm OD)
- Certification: RoHS 2011/65/EU compliant
Precision-machined brass tee connector featuring triple sealing surfaces with 30° conical seat design for leak-free connections. The nickel-plated finish enhances corrosion resistance in humid environments. Internal flow channels are optimized for minimal pressure drop (ΔP < 0.01MPa at 0.5MPa input).
- Branch line connections in pneumatic control systems
- Modular assembly of automation equipment manifolds
- Coolant distribution in CNC machine tools
- Vacuum line configurations for packaging machinery
- Compressed air networks in food processing plants
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (clockwise winding).
Hand-tighten plus 1/4 turn with wrench – over-tightening may deform
sealing surfaces. Maximum angular misalignment tolerance: ±3°.
