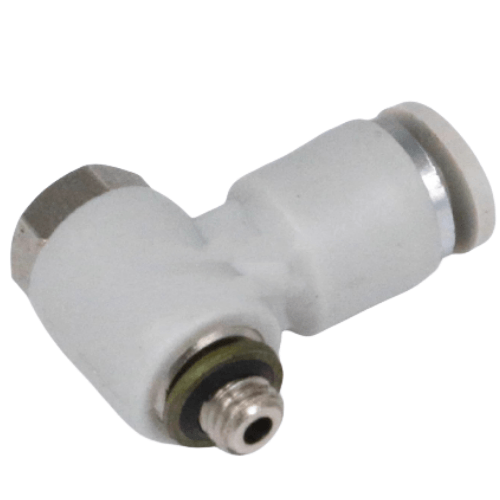

Airtac X-APHT Adapter - Brass Hex X-APHT1003
AirTAC X-APHT1003 Full Brass Hex Fitting Technical Details
- Model: X-APHT1003
- Material: Lead-free brass (CW617N)
- Surface treatment: Electro-polished nickel plating (3-5μm)
- Thread type: BSPP (G) / NPT optional
- Thread size: 1/8" (PT1/8, G1/8, NPT1/8)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa (870 psi)
- Temperature range: -20℃ to 120℃
- Hex size: 17mm AF (across flats)
- Weight: 22g ±0.5g
- Dimensions: 30mm(L) × 17mm(W) × 17mm(H)
- Seal compatibility: Compatible with air, water, and non-corrosive gases
- Vibration resistance: 10-2000Hz, 15G acceleration
- Certification: RoHS 2011/65/EU compliant
Precision-machined brass fitting with 6-step CNC processing, featuring enhanced wall thickness (1.8mm minimum) for high-pressure pneumatic systems. The double-sealing design combines 30° cone seat with O-ring (NBR) for zero-leak performance. Electroless nickel coating provides 500hr salt spray resistance per ASTM B117.
- High-cycle pneumatic cylinders in packaging machinery
- Vacuum system manifolds for electronics assembly
- Hydraulic test bench connections (non-petroleum fluids)
- Compressed air distribution in CNC equipment
- Coolant line junctions for laser cutting systems
Installation protocol:
Use 24mm crows foot wrench for torque-controlled assembly (max 15N·m).
Apply Loctite 577 thread sealant for liquid applications. Avoid brass-to-steel
direct contact in saltwater environments.
