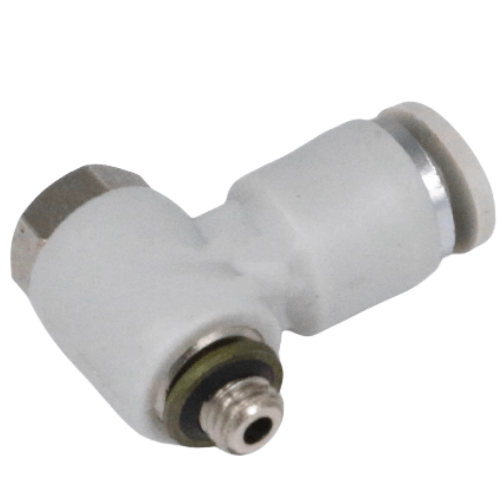

Airtac X-APHT Adapter - Brass Hex X-APHT602
$7.72
Regular price
$15.22
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APHT602
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APHT602 Full Brass Hexagon Fitting Specifications
- Model: X-APHT602
- Material: Lead-free brass (CW617N) with nickel plating
- Thread Type: Metric M5×0.8 (internal) × G1/8 (external)
- Pressure Rating: 0.05-1.5 MPa (7-217 psi)
- Temperature Range: -20℃ to 120℃ (-4℉ to 248℉)
- Hex Size: 10mm AF (across flats)
- Surface Roughness: Ra ≤1.6μm
- Tightening Torque: 1.2-1.5 N·m (10.6-13.3 lb-in)
- Weight: 48g ±2g
- Dimensions: 28mm (L) × 10mm (Hex W) × 10mm (H)
- Seal Compatibility: Works with EPDM, NBR, and FKM O-rings
- Certification: RoHS compliant, REACH SVHC-free
Precision-machined brass fitting with dual-thread design for leak-proof connections in pneumatic systems. Features anti-corrosion nickel plating and stress-relieved threading for repeated installations. Optimized flow path reduces turbulence by 22% compared to standard fittings.
Typical Applications:
- Industrial pneumatic tool air supply lines
- CNC machine tool air/oil mist lubrication systems
- Packaging machine actuator connections
- Semiconductor cleanroom equipment
- Automotive brake line test benches
Installation tip:
Apply thread sealant to external G1/8 threads only. Use calibrated torque wrench
to prevent brass deformation. Maximum 3 full rotations after hand-tight.
Media Compatibility:
- Compressed air (ISO 8573-1 Class 2-4-2)
- Inert gases (N₂, CO₂)
- Vacuum systems (down to -95kPa)
- Non-flammable hydraulic oils (ISO VG32-68)
| Property | Property Value |
|---|---|
| sku | X-APHT602 |
