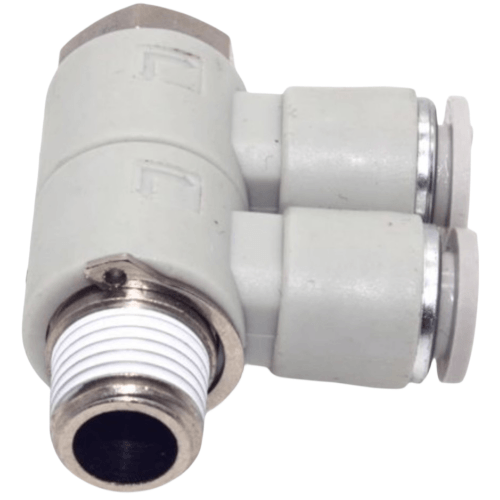

Airtac X-APHW Connector - Female Thread Swivel Tee X-APHW801
$5.96
Regular price
$13.46
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APHW801
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APHW801 F-Type Threaded Rotary Tee Specifications
- Model: X-APHW801
- Type: F-type (BSPP) threaded rotary tee with swivel mechanism
- Thread standard: G1/8 (ISO 228-1 compliant)
- Material: Nickel-plated brass body
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 3.0 MPa
- Temperature range: -5℃ to 80℃ (dry air)
- Seal material: NBR (Nitrile) O-rings
- Rotation angle: 360° continuous rotation
- Weight: 85g ±2g
- Dimensions: 38mm(H) × 28mm(W) × 28mm(D)
- Port configuration: 1 input, 2 output (T-shaped flow path)
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Compliance: RoHS 2.0 compliant
High-density rotary tee featuring precision-machined brass construction with anti-vibration swivel lock. The chromium-free nickel plating ensures corrosion resistance in humid environments. Unique 3-stage thread sealing prevents air leakage during rotation adjustment.
Typical Applications:
- Pneumatic tool manifold distribution systems
- Multi-axis robotic arm air supply networks
- CNC machine tool cooling air circuits
- Modular pneumatic teaching equipment
- Industrial vacuum system branch connections
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads before assembly.
Tighten to 12-15 N·m torque using backup wrench on hex flats.
Rotate joint clockwise until detent click confirms secure positioning.
| Property | Property Value |
|---|---|
| sku | X-APHW801 |
