Airtac X-APK Connector-5-Way X-APK12
AirTAC X-APK12 5-Way Fitting Connector Specifications
- Model: X-APK12
- Type: 5-port manifold base (1 inlet, 4 outlets)
- Thread standard: G1/8 (ISO228/EN10226 compliant)
- Material: Nickel-plated brass body, NBR seals
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 500 L/min (ANR)
- Temperature range: -5℃ to 80℃ (with silicone seals: -20℃ to 100℃)
- Weight: 128g ±2g
- Dimensions: 40mm(W) × 40mm(D) × 30mm(H)
- Port spacing: 12mm center-to-center
- Surface treatment: Electroless nickel plating (8-12μm)
- Vibration resistance: 10-55Hz, 1.5mm amplitude

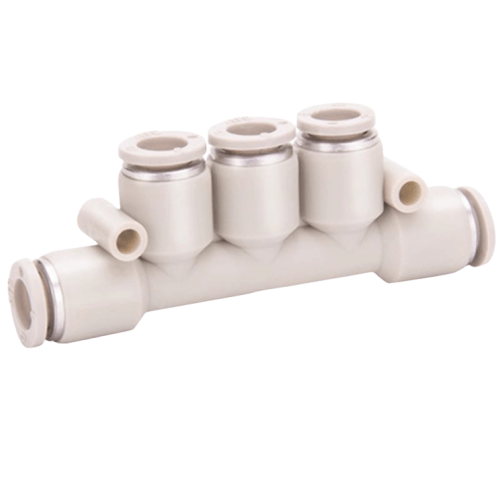

A modular 5-way pneumatic distribution block engineered for multi-circuit branching in confined spaces. Features precision-machined internal channels with 25μm filtration compatibility and leak-proof double-seal design. The staggered port arrangement allows tool access in dense assemblies.
- Multi-axis pneumatic gripper systems
- Automated assembly line fixture controls
- Plastic injection molding machine air circuits
- Semiconductor handling equipment manifolds
- Packaging machine air knife arrays
Installation protocol:
Use 1.2-1.5Nm torque with PTFE tape or liquid sealant on threads.
For vertical stacking, install support brackets every 5 units.
Avoid brass-brass direct contact in corrosive environments.
- Center port (P): Main supply inlet
- Ports 2/4: Normally closed (NC) outlets
- Ports 1/3/5: Normally open (NO) outlets
