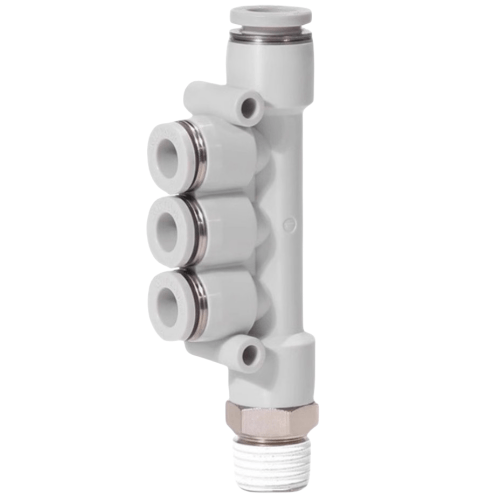

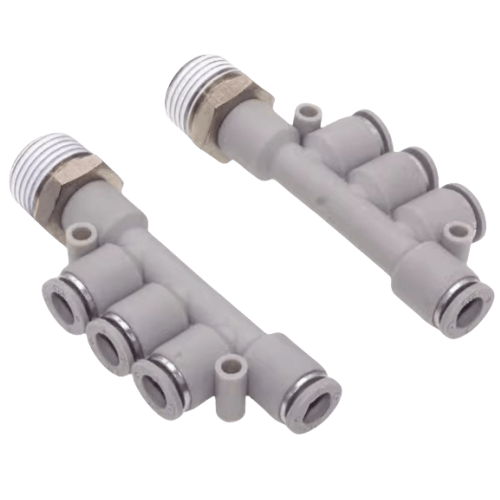

Airtac X-APKB Connector - Threaded 5 Port X-APKB1204
AirTAC X-APKB1204 Threaded Five-way Fitting Specifications
- Model: X-APKB1204
- Type: Five-way threaded manifold (T-port configuration)
- Thread standard: Metric (M5×0.8)
- Port configuration: 1 input (P), 2 outputs (A/B), 2 exhausts (EA/EB)
- Material: Aluminum alloy ADC12
- Surface treatment: Nickel-plated (3-5μm thickness)
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Temperature range: -5℃ to 80℃
- Weight: 48g ±2g
- Dimensions: 34mm(L) × 34mm(W) × 22mm(H)
- Seal material: NBR (Nitrile rubber)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Compatibility: Works with ISO 15407-1 standard valves
Precision-machined manifold block designed for centralized pneumatic circuit distribution. Features integrated exhaust ports with silencer-ready threads (M5×0.8) and anti-vibration mounting ears. The anodized surface provides enhanced corrosion resistance against hydraulic oils and mild chemicals.
- Modular pneumatic valve island assemblies
- Robotic gripper control systems
- Automated production line manifolds
- Medical device pneumatic clusters
- Food processing equipment air distribution
Installation note:
Apply 2-3Nm torque during installation. Use thread sealant only on male threads,
avoiding contamination of exhaust paths. For vertical mounting, position exhaust ports downward
to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-APKB1204 |
