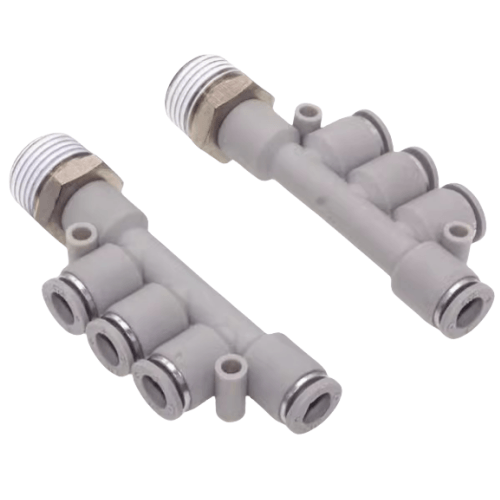

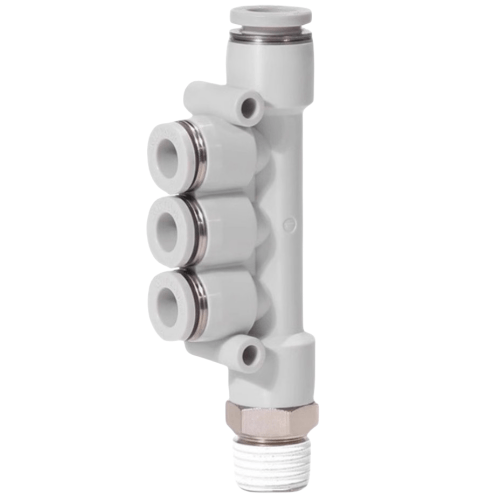

Airtac X-APKB Connector - Threaded 5 Port X-APKB801
$5.08
Regular price
$12.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APKB801
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APKB801 Threaded 5-Way Connector Specifications
- Model: X-APKB801
- Type: 5-way threaded manifold (ISO G standard)
- Material: Anodized aluminum alloy (AL6063-T5)
- Thread specification: G1/8 (ISO 228-1 compliant)
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 80℃
- Port configuration: 1 input + 4 outputs
- Surface hardness: HV 0.3/15≥12
- Weight: 120g ±5%
- Dimensions: 80mm(L) × 40mm(W) × 40mm(H)
- Seal type: Integrated O-ring (NBR material)
- Corrosion resistance: 96hrs salt spray test passed
A high-flow distribution block with precision-machined internal channels, designed for creating compact pneumatic manifolds. Features laser-etched flow direction indicators and anti-vibration thread locking design. Compatible with most ISO 15407-1 compliant valves.
Typical Applications:
- Multi-valve clustering in automation workstations
- Modular pneumatic control panels
- Robotic end-effector air distribution
- CNC machine tool pneumatic circuits
- Packaging line actuator control systems
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten to 12-15 N·m torque using
counter-rotation pattern. Avoid overtightening to prevent port deformation.
Component Pairing:
- Optimal with AV-20/21/30 series valves
- Use X-AKZ6 series brackets for rail mounting
- Combine with X-AHKB quick connectors for tool-free maintenance
| Property | Property Value |
|---|---|
| sku | X-APKB801 |
