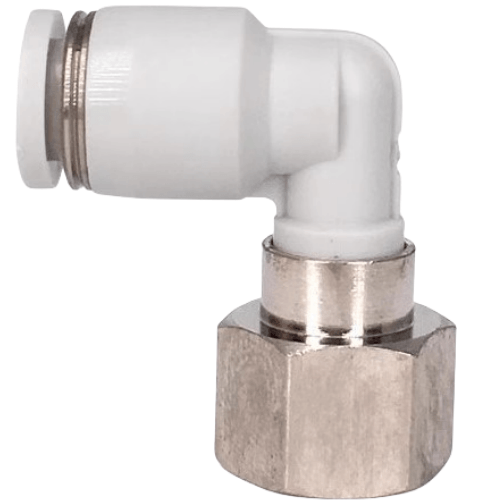

Airtac X-APLF L-Type Female Thread Two-Port Adapter X-APLF1003
$4.62
Regular price
$12.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APLF1003
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APLF1003 Female Thread L-shaped Two-way Fitting Specifications
- Model: X-APLF1003
- Type: L-shaped 90° elbow with female threads
- Thread standard: Metric (M5×0.8 internal thread)
- Material: Brass with nickel plating (stainless steel optional)
- Pressure rating: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: ≥HV200
- Leakage rate: ≤3 bubbles/min under 0.5 MPa air pressure
- Weight: 28g ±1g
- Dimensions: 25mm(L) × 15mm(W) × 15mm(H)
- Port alignment: Precision machined ±0.1mm tolerance
- Anti-vibration: Integrated O-ring groove design
Precision L-shaped pneumatic connector featuring corrosion-resistant nickel plating and dual-port sealing. The 90° angled design optimizes space utilization in compact pneumatic circuits while maintaining laminar airflow. Compatible with ISO 1179-2 standards for metric connectors.
Typical Applications:
- Pneumatic valve manifold interconnections
- Robotic arm tool changer systems
- CNC machine lubrication lines
- Semiconductor vacuum handling equipment
- Food-grade pneumatic systems (stainless steel version)
Installation guidelines:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten to 1.2-1.5 N·m torque using 8mm open-end wrench.
Avoid overtightening to prevent thread deformation.
Seal Compatibility:
Works with NBR, FKM, or EPDM O-rings (pre-installed NBR standard).
Not recommended for phosphate ester fluids or strong alkalis.
| Property | Property Value |
|---|---|
| sku | X-APLF1003 |
