Airtac X-APLF L-Type Female Thread Two-Port Adapter X-APLF6M8
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APLF6M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

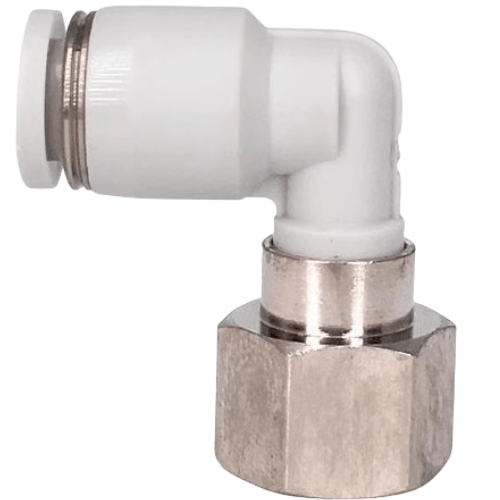

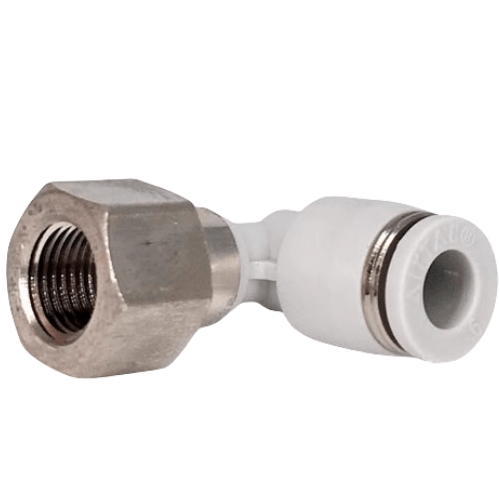

AirTAC X-APLF6M8 Elbow Fitting - L-Type Female Thread Specifications
- Model: X-APLF6M8
- Type: L-shaped 2-port elbow with female threads
- Thread Standard: Metric (M8×1.0)
- Material: Brass with nickel plating
- Seal Material: NBR (Nitrile Rubber)
- Operating Pressure: 0.05–1.0 MPa
- Temperature Range: -20℃ to 80℃
- Flow Coefficient (Cv): 0.15
- Weight: 8.2g ±0.3g
- Dimensions: 21mm(L) × 18mm(W) × 24mm(H)
- Surface Hardness: HV200-250
- Torque Resistance: ≤25 N·m
- Vibration Resistance: 10-2000Hz, 1.5mm amplitude
Precision-engineered 90° pneumatic connector with anti-vibration threads and self-aligning design. Features triple-layer nickel plating for enhanced corrosion resistance in humid environments. The chamfered port edges prevent tubing abrasion during installation.
Typical Applications:
- Space-constrained pneumatic circuit routing
- Robotic arm end-effector air supply
- CNC machine tool clamp systems
- Food processing equipment (FDA-compliant NBR seals)
- Vacuum system manifold connections
Installation protocol:
Apply thread sealant only on male threads (not required for tapered threads).
Tighten with 12-15 N·m torque using backup wrench on hex base.
Perform pressure test at 1.5× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APLF6M8 |
