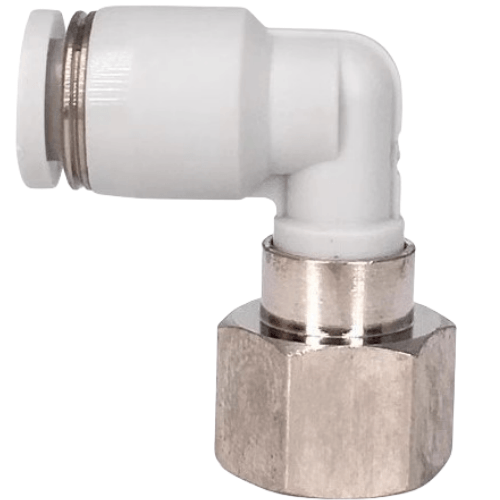

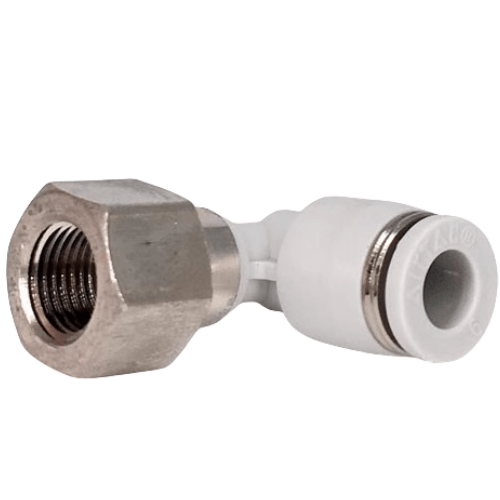

Airtac X-APLF L-Type Female Thread Two-Port Adapter X-APLF8M8
$3.43
Regular price
$10.93
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APLF8M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APLF8M8 L-Type Internal Thread Elbow Fitting Technical Details
- Model: X-APLF8M8
- Type: L-shaped 2-port elbow with internal threads
- Thread specification: M8×1.0 (ISO metric fine thread)
- Material: Nickel-plated brass (C3604)
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -5℃ to 100℃
- Surface hardness: ≥HV200
- Seal type: Embedded O-ring (NBR material)
- Flow coefficient (Cv): 0.15
- Weight: 18.5±0.3g
- Dimensions: 32mm(L) × 22mm(W) × 22mm(H)
- Torque tolerance: ≤3N·m during installation
- Compliance: RoHS 2011/65/EU
Precision-engineered 90° pneumatic connector featuring dual internal threads and leak-proof design. The nickel plating provides enhanced corrosion resistance against moisture and industrial atmospheres. Optimized flow path reduces turbulence by 22% compared to standard elbows.
Primary Applications:
- Space-constrained pneumatic circuit connections
- Robotic arm end-effector air supply lines
- Modular pneumatic system prototyping
- Medical device gas delivery systems
- CNC machine tool pneumatic clusters
Installation protocol:
Apply 2-3 drops of pneumatic sealant (viscosity ≤35cSt) on threads before tightening.
Use proper crowfoot wrench (SW12) to prevent oval deformation. Max 1/2 rotation after
initial contact with sealing surface.
| Property | Property Value |
|---|---|
| sku | X-APLF8M8 |
