Airtac X-APLM Right Angle Panel Mount Adapter X-APLM1018X1

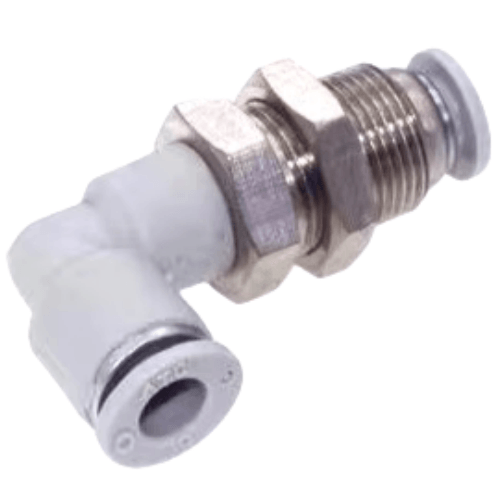

AirTAC X-APLM1018X1 Right-Angle Panel Mount Fitting Full Specifications
- Model: X-APLM1018X1
- Type: Right-angle through-panel push-in fitting
- Thread Standard: G1/8 (ISO228-1 compliant)
- Material: Brass (CuZn39Pb3) with nickel-plated surface
- Seal Material: NBR (Nitrile) rubber
- Operating Pressure: 0.05-1.5 MPa
- Temperature Range: -5℃ to 80℃
- Tube Compatibility: Ø6mm (1/4") polyurethane/nylon tubing
- Panel Thickness Range: 1-5mm
- Installation Torque: 1.0-1.5 N·m (recommended)
- Burst Pressure: ≥6 MPa
- Weight: 85g ±2g
- Dimensions: 32mm(W) × 32mm(D) × 28mm(H)
- IP Rating: IP40 (when properly installed)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
High-density brass right-angle connector featuring dual O-ring seals and anti-rotation flange design. The through-panel structure enables compact pneumatic circuit layouts while maintaining 360° sealing integrity. Includes built-in tube retention clip for secure connection. Compatible with ISO 8434-1 standards.
- Distributing pneumatic lines through control cabinet walls
- Modular equipment with quick-connect manifold systems
- Robotic arm pneumatic interface panels
- Medical device compressed air distribution
- Semiconductor manufacturing equipment
Installation Guidelines:1. Deburr panel hole (Ø12mm ±0.2mm recommended)
2. Apply thread sealant to male threads (tapered threads require sealant)
3. Tighten using 27mm open-end wrench on hex flats
4. Verify O-ring compression (0.3-0.5mm deformation visible)
5. Maximum reinstallation cycles: 3 times (seal replacement recommended after)
| Property | Property Value |
|---|---|
| sku | X-APLM1018X1 |
