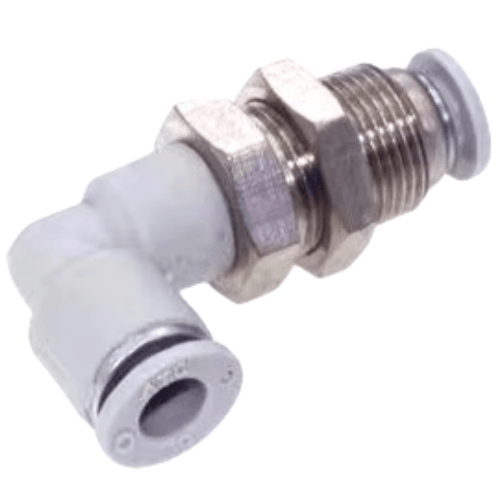

Airtac X-APLM Right Angle Panel Mount Adapter X-APLM1220X1
AirTAC X-APLM1220X1 Right Angle Bulkhead Fitting Technical Details
- Model Code: X-APLM1220X1
- Type: Right-angle through-panel pneumatic connector
- Thread Standard: G1/2" (BSPP) female threads both ends
- Material: Nickel-plated brass body
- Seal Type: Double-layer NBR O-ring with dustproof design
- Pressure Rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 80℃ (continuous operation)
- Flow Coefficient (Cv): 3.2
- Surface Treatment: Electroless nickel plating (8-12μm thickness)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Weight: 238g ±2%
- Dimensions: 52mm(H) × 34mm(W) × 34mm(D)
- Panel Cutout: Requires Φ25mm mounting hole
- IP Rating: IP54 (panel-mounted configuration)
Heavy-duty bulkhead connection solution designed for industrial pneumatic systems requiring panel penetration. Features anti-vibration structure with dual-lip sealing that maintains integrity under pressure fluctuations. The nickel plating provides corrosion resistance in humid environments. Compatible with ISO 1179-1 standards.
- Pneumatic cabinet pass-through connections
- CNC machine tool air line distribution
- Food processing equipment (NSF compliant seals)
- Mobile hydraulic/pneumatic hybrid systems
- Semiconductor fab cleanroom installations
Mounting guidance:
Use 35-45 N·m torque during installation. Apply Loctite 243
on male threads when used in high-vibration environments.
Orientation arrow indicates recommended airflow direction
for optimal sealing performance.
Compatibility note:
Not suitable for steam applications. When using PTFE tape,
wrap 1.5 turns maximum to prevent seal extrusion.
Always perform pressure test at 1.8MPa before commissioning.
| Property | Property Value |
|---|---|
| sku | X-APLM1220X1 |
