Airtac X-APLM Right Angle Panel Mount Adapter X-APLM412X1
$5.44
Regular price
$12.94
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APLM412X1
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

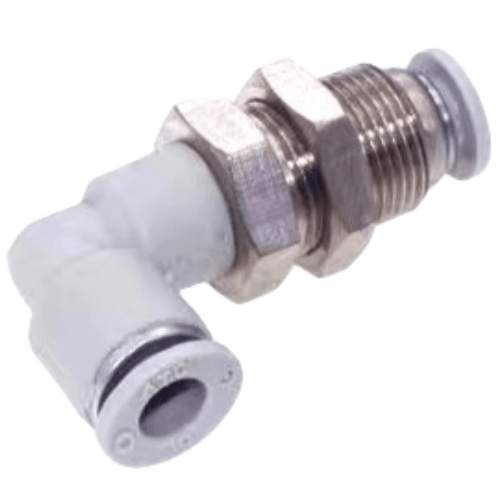

AirTAC X-APLM412X1 Right-Angle Panel Mount Fitting Technical Details
- Model: X-APLM412X1
- Type: Right-angle through-panel push-in fitting
- Thread Standard: 1/4" NPT female threads (both ends)
- Material: Nickel-plated brass body + NBR seals
- Operating Pressure: 0-1.0 MPa (0-145 PSI)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Flow Capacity: 700 NL/min @ 0.5 MPa
- Installation Torque: 10-12 N·m max
- Weight: 68g (2.4 oz)
- Dimensions: 38mm(W) × 42mm(H) × 32mm(D)
- Seal Hardness: 70±5 Shore A
- Compatible Tubing: Φ12mm PU/Nylon (9.5-12.5mm OD range)
- Vibration Resistance: ≤50 m/s²
- Protection Rating: IP54 (panel-mounted configuration)
High-density machining right-angle connector with integrated panel sealing washer, designed for space-constrained pneumatic systems requiring 90° tubing routing. Features double O-ring retention system and anti-vibration collar. Rated for 500,000+ insertion cycles.
Ideal Applications:
- CNC machine tool pneumatic cabinets
- Automated packaging line manifold systems
- Food processing equipment with washdown requirements
- Mobile hydraulic/pneumatic hybrid systems
- Semiconductor manufacturing cleanrooms
Installation protocol:
Apply 2-3 drops of silicone-free lubricant on O-rings before assembly.
Use backup wrench on hex flats during tube insertion to prevent rotation.
Maximum panel thickness: 10mm (0.4").
Media Compatibility:
- Compressed air (dew point -20℃ or lower)
- Inert gases (N₂, CO₂)
- Vacuum systems (down to -95 kPa)
- Not compatible with ester/oil-based lubricants or halogen gases
| Property | Property Value |
|---|---|
| sku | X-APLM412X1 |
