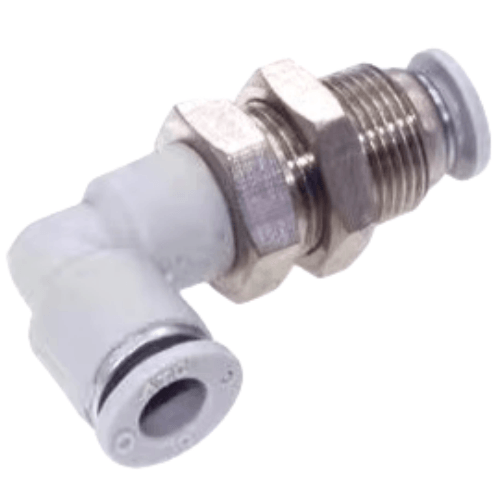

Airtac X-APLM Right Angle Panel Mount Adapter X-APLM614X1
AirTAC X-APLM614X1 Right-Angle Bulkhead Fitting Technical Details
- Model: X-APLM614X1
- Type: Right-angle bulkhead push-in fitting (male thread to tube)
- Body material: Nickel-plated brass (ISO 9001 certified)
- Thread specification: M5×0.8 male thread (ISO 6149-3 compliant)
- Tube compatibility: Ø4mm (1/8") OD pneumatic tubing
- Operating pressure: 0.05–1.5 MPa (7–217 psi)
- Temperature range: -20℃ to 80℃ (continuous duty)
- Seal material: Oil-resistant NBR (nitrile) rubber
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Vibration resistance: ≤10Hz @ 2.5mm amplitude
- Weight: 12.5g ±0.3g
- Dimensions: 21mm(H) × 16mm(W) × 16mm(D)
- Installation torque: 0.7–1.2 N·m (thread engagement)
Precision-engineered right-angle connector designed for panel-mounted pneumatic systems. Features triple sealing layers (thread seal, O-ring, and tube grip) with 360° rotatable fitting head for flexible tubing alignment. The through-panel design allows clean installation in control cabinets or machinery walls while maintaining IP54 protection.
- CNC machine tool pneumatic distribution panels
- Robotic arm end-effector air supply connections
- Semiconductor wafer handling equipment
- Packaging machine sensor air purge systems
- Laboratory automation instrument air lines
Installation protocol:
Use backup wrench on hex flats during assembly. Maximum 1/4 turn past hand-tight.
Apply Loctite 542 only on clean threads. Perform pressure test at 1.8MPa before operation.
