Airtac X-APLM Right Angle Panel Mount Adapter X-APLM816X1
$5.80
Regular price
$13.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APLM816X1
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

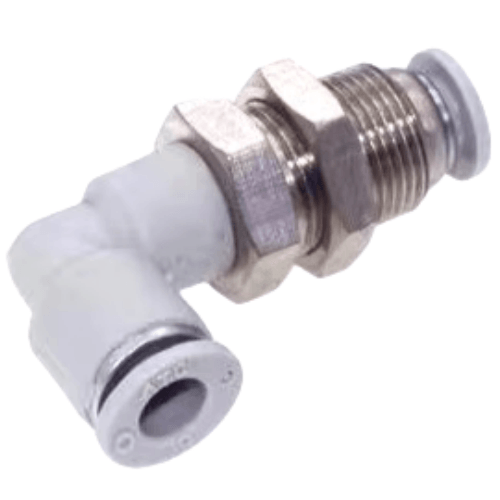

AirTAC X-APLM816X1 Right Angle Bulkhead Fitting Technical Details
- Model: X-APLM816X1
- Type: Right angle through-panel pneumatic connector
- Body material: Anodized aluminum alloy (AL6063-T5)
- Thread specification: M8×1.25 (male) × G1/8 (female)
- Temperature range: -20℃ to 80℃
- Pressure range: 0~1.5 MPa (217.5 PSI)
- Seal material: HNBR rubber (nitrile hydrogenated)
- Installation type: Panel mount with 12mm mounting hole
- Surface treatment: Clear anodization (5-8μm)
- Weight: 85g ±2g
- Dimensions: 40mm(L) × 24mm(W) × 24mm(H)
- Flow coefficient (Cv): 0.45
- Vibration resistance: ≤55Hz, 1.5mm amplitude
- Certifications: RoHS compliant, REACH SVHC-free
High-density machining bulkhead connector designed for pneumatic line transitions through control panels or machine walls. Features dual O-ring sealing (front and back) with anti-vibration thread locking structure. The 90° flow path minimizes pressure drop in compact installations.
Common Applications:
- Pneumatic cabinet pass-through connections
- Robotic arm umbilical routing systems
- CNC machine tool air line distribution
- Semiconductor equipment panel interfaces
- Food processing machinery (oil-resistant version available)
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (exclude first thread).
Use 1.2-1.5N·m torque during panel installation.
For corrosive environments, apply silicone grease on O-rings before assembly.
Fluid compatibility:
Compressed air (ISO 8573-1:2010 Class 2-4-2),
Inert gases (N2, CO2),
Not recommended for steam or hydrocarbon fluids
| Property | Property Value |
|---|---|
| sku | X-APLM816X1 |
