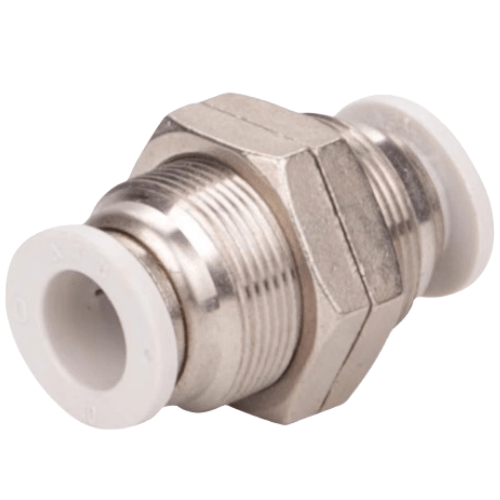

Airtac X-APM Connector - Bulkhead Straight X-APM10
AirTAC X-APM10 Bulkhead Union Fitting Technical Details
- Model: X-APM10
- Type: Bulkhead straight-through connector (dual male thread)
- Body material: Nickel-plated brass (C3604)
- Seal material: NBR (Nitrile) O-rings
- Thread specifications: M10×1.0 male threads (both ends)
- Through-hole diameter: Ø6.5mm
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (NBR compatible)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Weight: 28g ±1g
- Dimensions: 34mm (L) × 16mm (W) × 16mm (H)
- Surface treatment: Electroless nickel plating (8-12μm)
- Compliance: RoHS 2.0 compliant
Heavy-duty bulkhead fitting designed for panel mounting in pneumatic systems. Features anti-vibration thread design with 360° swivel capability post-installation. The nickel-plated surface provides corrosion resistance in humid environments. Includes integrated sealing washer for pressure-tight installations.
- Pneumatic control cabinet panel connections
- Industrial robot arm pneumatic line routing
- CNC machine tool air supply interfaces
- Food processing equipment (non-contact areas)
- Compressed air distribution manifolds
- Laboratory instrumentation air lines
Installation protocol:
Use 19-21 N·m torque with M10 locknut. Apply pipe sealant only on male threads,
avoiding contact with O-rings. Maximum panel thickness: 8mm.
Perform pressure test at 1.1× system pressure after installation.
- Cv value: 0.45
- Effective area: 12.5 mm²
- Max flow rate: 350 NL/min @ 0.5 MPa
| Property | Property Value |
|---|---|
| sku | X-APM10 |
