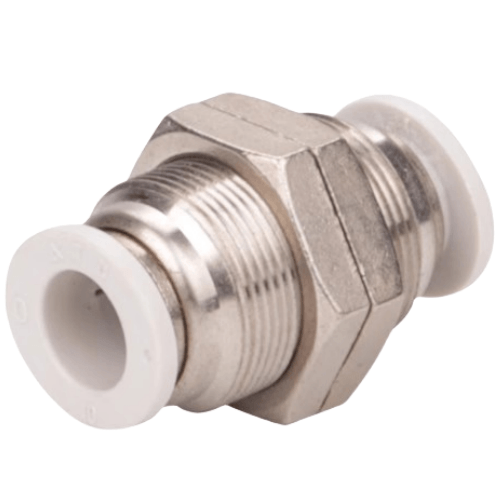

Airtac X-APM Connector - Bulkhead Straight X-APM16
AirTAC X-APM16 Bulkhead Union Fitting Technical Details
- Model: X-APM16
- Type: Bulkhead straight-through union
- Thread specification: M5×0.8 dual-end male threads
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-rings
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃
- Port-to-port length: 24.5±0.5mm
- Hex size: 14mm wrench flat
- Installation: Panel mounting with integrated nut
- Flow coefficient (Cv): 0.15
- Weight: 28±2 grams
- Dimensions: 24.5mm(L) × 14mm(W) × 14mm(H)
- Protection rating: IP54 (when properly installed)
- Torque specification: 1.2-1.5 N·m max during installation
Robust panel-mount pneumatic connector designed for through-panel air passage in confined spaces. Features anti-vibration thread design with dual sealing surfaces (metal-to-metal primary seal + NBR secondary seal). Includes integrated locknut with nylon insert to prevent loosening under vibration.
- Control panel pneumatic interface connections
- Modular pneumatic system interlinks
- Medical equipment gas line passthroughs
- Robotic arm pneumatic circuit junctions
- CNC machine tool pneumatic cabinet installations
Installation protocol:
Apply 2-3 drops of pneumatic sealant (PST) on threads before assembly.
Tighten until metal-to-metal contact is achieved (audible "click"),
then apply 1/8 additional turn for NBR compression. Avoid over-torquing
to prevent O-ring extrusion.
