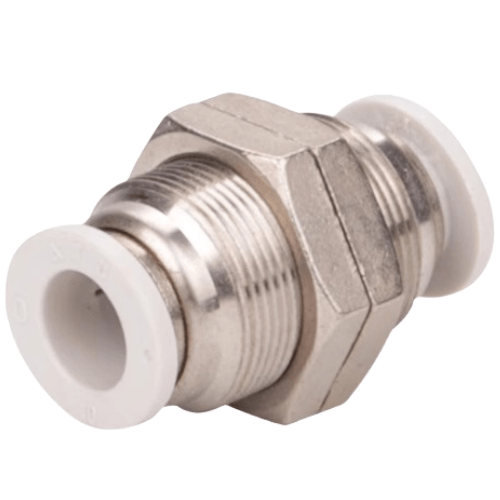

Airtac X-APM Connector - Bulkhead Straight X-APM8
AirTAC X-APM8 Bulkhead Straight Fitting Specifications
- Model: X-APM8
- Type: Bulkhead straight-through connector (male thread to female thread)
- Material: Nickel-plated brass (stainless steel optional)
- Port size: M5×0.8 (1/8" NPT available)
- Thread length: 8mm (both sides)
- Max working pressure: 1.5 MPa (217 PSI)
- Min burst pressure: 4.5 MPa (653 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 18g ±0.5g
- Dimensions: 18mm(L) × 12mm(W) × 12mm(H)
- Surface roughness: Ra ≤1.6μm
- Installation torque: 0.8-1.2 N·m (7-10.6 lb-in)
- Compliance: RoHS compliant
Precision-engineered bulkhead fitting designed for panel mounting in pneumatic systems. Features dual O-ring seals (NBR material) for bidirectional leak prevention and hexagonal body for tool tightening. Ideal for creating through-panel connections while maintaining compact spacing between components.
- Modular pneumatic control cabinets
- Robotic arm pressure line passthroughs
- Medical device gas distribution panels
- Semiconductor manufacturing equipment
- Electric vehicle battery cooling systems
Installation protocol:
Use PTFE tape on male threads only. Torque in 0.2 N·m increments.
Avoid cross-threading by hand-starting 3 full rotations before tool use.
Compatible with AirTAC XA/XB/XM series manifolds.
| Property | Property Value |
|---|---|
| sku | X-APM8 |
