Airtac X-APMT Connector - Full Brass Bulkhead Straight X-APMT10

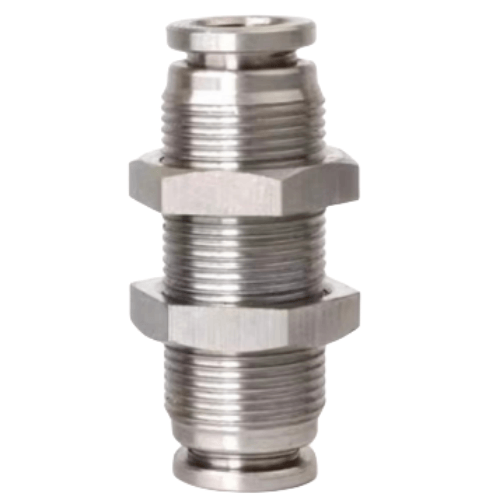

AirTAC X-APMT10 Brass Bulkhead Straight Fitting Technical Details
- Model: X-APMT10
- Type: Bulkhead straight through fitting with full brass partition
- Thread standard: Metric (M5×0.8 internal thread)
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface treatment: Electroplated nickel (5-8μm thickness)
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 120℃ (-4℉ to 248℉)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Flow coefficient (Cv): 0.12
- Installation torque: 0.5-0.7 N·m
- Weight: 8.5±0.3 grams
- Dimensions: 16mm(Ø) × 18.5mm(H) × 10mm(Flange width)
- Seal type: Metal-to-metal sealing (no O-ring required)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certifications: ISO 8434-1, DIN 2353
- Package quantity: 50 pieces/box (bulk packaging)
Heavy-duty brass bulkhead fitting designed for permanent installations requiring panel penetration. Features anti-vibration structure with reinforced flange and precision-machined threads. The nickel-plated surface provides enhanced corrosion resistance in humid environments. Compatible with air, water, and inert gases.
- Pneumatic control cabinet panel mounting
- Coolant line connections in CNC machines
- Compressed air distribution systems
- Hydraulic test bench setups
- Vacuum chamber feedthroughs
- Instrumentation panel installations
Installation guidelines:
Use PTFE tape on male threads for leak-proof sealing.
Tighten using a 13mm open-end wrench on hex flats.
Maximum panel thickness: 5mm.
Perform pressure test at 1.1× system pressure after installation.
