Airtac X-APMT Connector - Full Brass Bulkhead Straight X-APMT12
AirTAC X-APMT12 Full Brass Bulkhead Straight Fitting Technical Details
- Model: X-APMT12
- Type: Bulkhead straight through fitting with full brass partition
- Material: Lead-free brass (CW617N) with electroless nickel plating
- Port size: G1/8 (BSPP thread)
- Maximum working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6.0 MPa
- Temperature range: -5℃ to 100℃ (non-freezing conditions)
- Thread engagement: 10±1mm
- Seal material: NBR (Nitrile) O-rings
- Surface roughness: Ra ≤3.2μm (flow path)
- Weight: 48±2g
- Dimensions: 32mm(Length) × 20mm(Width) × 25mm(Height)
- Compliance: RoHS 2.0 compliant

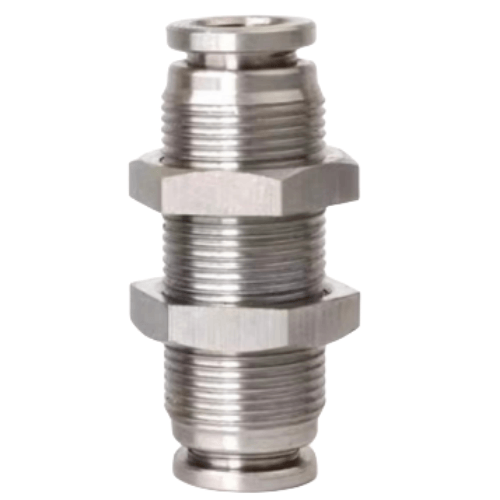

Heavy-duty bulkhead fitting featuring corrosion-resistant brass construction and precision-machined threads for leak-free transitions through panels. The integrated partition wall allows secure mounting while maintaining airflow integrity. Anti-vibration design with dual O-ring seals ensures stable performance in pulsating systems.
- Pneumatic control cabinet installations
- Modular assembly in ISO valve terminals
- Medical equipment pneumatic passthroughs
- Food processing machinery panel mounts
- Robotic arm junction interfaces
Installation protocol:
Use 1.5-2Nm torque during mounting. Apply thread sealant only on external threads.
Minimum 3mm panel thickness required for secure sealing. Perform pressure test at 1.1x
system pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APMT12 |
