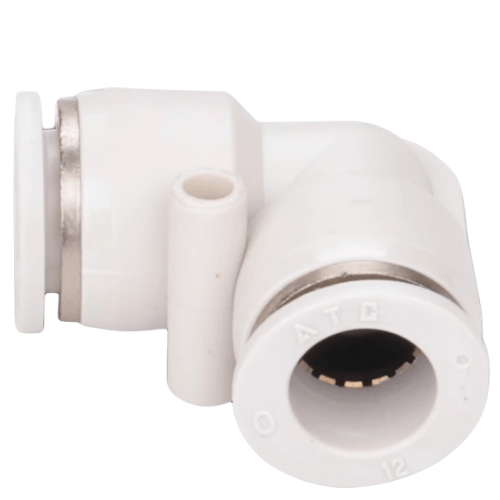

Airtac X-APV Elbow 2-Way Fitting X-APV10
AirTAC X-APV10 L-Type Two-Way Fitting Technical Details
- Model: X-APV10-L
- Type: L-shaped push-in pneumatic connector
- Thread standard: PT1/8 (BSPP) / M5×0.8 optional
- Material: Nickel-plated brass (Stainless steel SS304 variant available)
- Seal material: NBR (Nitrile) standard / FKM (Viton) optional
- Operating pressure: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃ (NBR) / -20℃ to 150℃ (FKM)
- Tube compatibility: Ø4mm (outer diameter) polyurethane/nylon tubing
- Proof pressure: 2.25 MPa
- Weight: 18.5g ±0.5g
- Dimensions: 24mm(L) × 16mm(W) × 24mm(H)
- Surface roughness: Ra ≤3.2μm
- Certification: RoHS compliant
90° angled pneumatic fitting with push-to-connect installation, featuring a self-locking collet mechanism for secure tube retention. The chrome-plated brass construction provides corrosion resistance in humid environments. Dual O-ring design ensures leak-free performance under vibration conditions.
- Compact pneumatic circuit branching in robotic end effectors
- Space-constrained automation equipment manifolds
- Medical device pneumatic connections requiring sharp bends
- Food processing machinery with frequent washdown requirements
- Semiconductor fab equipment needing vibration resistance
Installation protocol:
Cut tubing square (max 0.5° angular tolerance), insert fully until audible click.
For gas applications, apply thread sealant on male threads (PTFE tape not recommended).
Maximum tightening torque: 1.2N·m. Regular inspection cycle: 6 months in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | X-APV10 |
