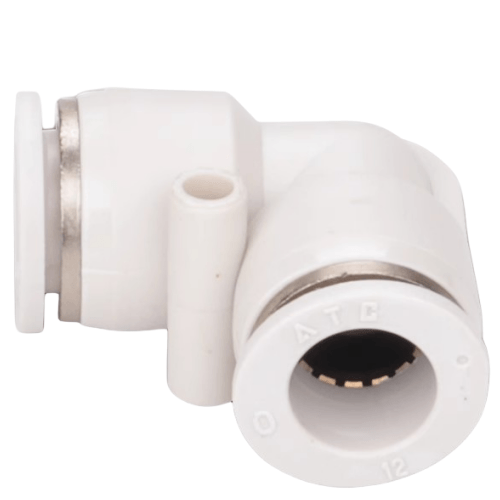

Airtac X-APV Elbow 2-Way Fitting X-APV16
AirTAC X-APV16 L-Type Two-Way Connector Technical Details
- Model Code: X-APV16
- Type: L-shaped push-to-connect pneumatic fitting
- Thread Standard: G1/4 (ISO228-1 compliant)
- Material: Lead-free brass with electroless nickel plating
- Seal Material: NBR (Nitrile) rubber inserts
- Operating Pressure: 0.05-1.0 MPa
- Temperature Range: -20℃ to 80℃ (with silicone seals optional for 120℃)
- Tube Compatibility: 8mm OD polyurethane/nylon tubing
- Flow Rate: 700 NL/min at 0.5 MPa
- Pressure Drop: ≤0.02 MPa at max flow
- Weight: 38g ±2g
- Dimensions: 35mm(L) × 24mm(W) × 32mm(H)
- Surface Finish: Ra0.8μm inner bore smoothness
- Certification: RoHS compliant
Precision-engineered L-shaped connector featuring 360° rotatable swivel design for flexible piping arrangements. The leak-proof structure incorporates dual O-ring seals and stainless steel bite-type grip for secure tube retention. Corrosion-resistant construction withstands humid environments and pneumatic system lubricants.
- Robotic arm end effector pneumatic lines
- CNC machine tool clamping circuits
- Packaging machine air distribution networks
- Semiconductor fab equipment gas lines
- Medical device pneumatic control systems
Installation Best Practices:
Cut tubing ends square and deburr before insertion. Engage tube with firm push until audible click.
For maintenance, use dedicated tube release collar tool (X-APV-T16). Avoid overtightening - recommended torque 15-18 Nm.
