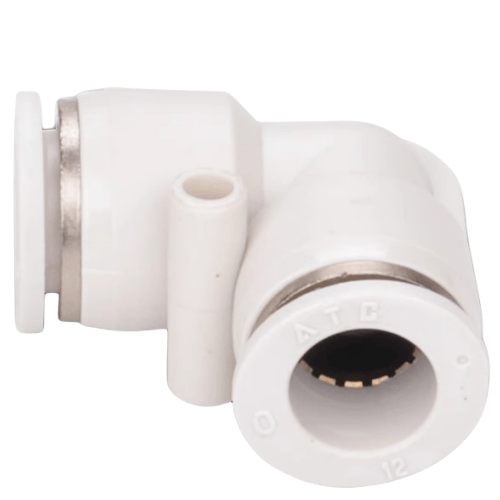

Airtac X-APV Elbow 2-Way Fitting X-APV6
AirTAC X-APV6 L-Shaped Two-Way Connector Specifications
- Model: X-APV6
- Type: L-shaped 90° pneumatic elbow connector
- Thread standard: Metric (M5) / Optional NPT/PT
- Port size: 1/8" (6mm nominal)
- Material: Nickel-plated brass (standard), Stainless steel (optional)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile) rubber
- Surface treatment: Electroless nickel plating (5-8μm)
- Pressure test: 1.5 MPa (air tightness), 3.0 MPa (burst)
- Weight: 28g ±1g
- Dimensions: 30mm (L) × 24mm (W) × 18mm (H)
- Thread engagement depth: 8mm
- Vibration resistance: 10–55Hz, 1.5mm amplitude
- Protection rating: IP40 (standard configuration)
A precision-engineered L-shaped pneumatic connector featuring laser-etched flow direction markings and dual O-ring seals. The chamfered entry design prevents tubing abrasion during installation. Optimized internal bore geometry reduces turbulent flow (pressure drop <0.02MPa at 0.6MPa). Compatible with PU, nylon, and rubber tubing (5–8mm OD).
- Space-constrained pneumatic circuit routing in robotic arms
- Modular pneumatic system installations
- CNC machine tool coolant control systems
- Packaging machine actuator connections
- Laboratory equipment pneumatic interfaces
Installation protocol:
Apply thread sealant only on male threads (not on tube insertion end).
Maximum recommended torque: 1.2N·m. Perform pressure decay test
(0.8MPa for 5min) after installation. Avoid axial stress on connector body.
| Property | Property Value |
|---|---|
| sku | X-APV6 |
