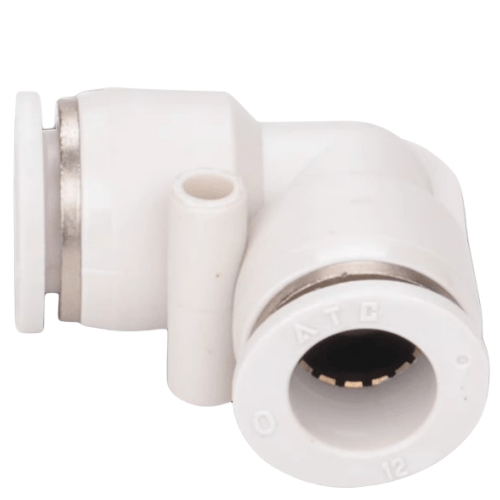

Airtac X-APV Elbow 2-Way Fitting X-APV8
AirTAC X-APV8 L-Type Elbow Fitting Specifications
- Model: X-APV8
- Type: L-shaped two-way pneumatic connector
- Thread standard: G1/8 (BSPP) / NPT1/8 optional
- Material: Stainless steel SS304 / Brass optional
- Max working pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 150℃ (NBR seals)
- Surface treatment: Natural anodized / Nickel-plated option
- Weight: 120g ±5% (brass version)
- Dimensions: 50mm(L) × 25mm(W) × 30mm(H)
- Flow coefficient (Cv): 0.8
- Vibration resistance: ≤20 m/s² (10-2000 Hz)
- Leakage rate: ≤3 bubbles/min (under 0.5 MPa)
Precision-engineered L-shaped pneumatic connector featuring 60° swivel capability for flexible tubing alignment. The through-hole design maintains 95% original flow rate with precision-machined tapered threads ensuring leak-free connections. Corrosion-resistant construction with optional nickel plating for harsh environments.
- Pneumatic tool air line distribution
- Robotic arm end effector connections
- CNC machine air blast systems
- Packaging machine actuator networks
- Semiconductor cleanroom equipment
Installation guidelines:
Apply 3-5 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using backup wrench.
Avoid overtightening beyond 180° rotation after hand-tight.
- AirTAC PU/PA tubes (Ø4-Ø12mm)
- ISO 15407-1 standard quick couplings
- Metric/SAE thread adapters
