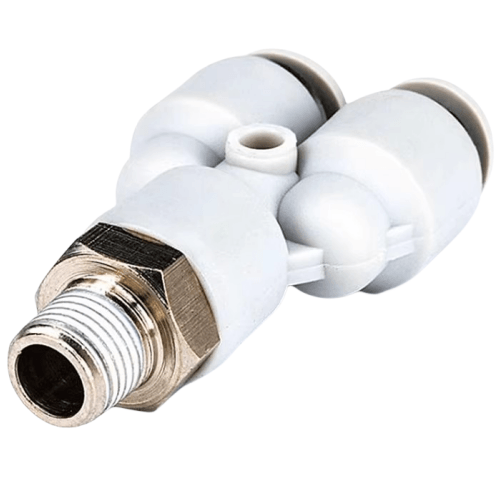

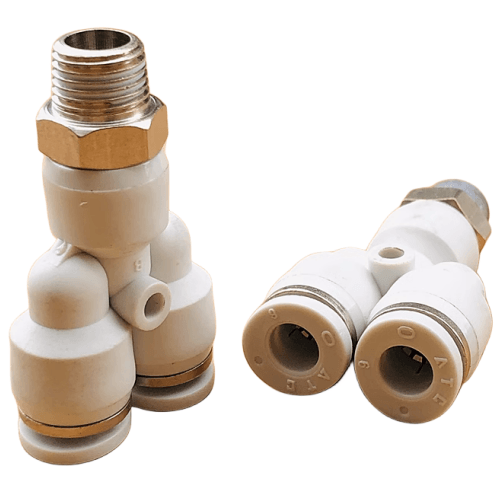

Airtac X-APX Adapter - Y-Type Threaded Tee X-APX1201
$5.34
Regular price
$12.84
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APX1201
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APX1201 Y-Type Threaded Tee Specifications
- Model: X-APX1201
- Type: Y-Type (3-way) pneumatic connector
- Thread Standard: Metric (M5×0.8) & NPT 1/8" dual markings
- Material: Nickel-plated brass body + PBT composite
- Pressure Range: 0.05-1.0 MPa (7-145 PSI)
- Temperature Range: -20℃ to 80℃ (continuous use)
- Port Configuration: 1/8" BSPP female threads on all three ports
- Flow Capacity: 250 NL/min @ 0.5 MPa
- Weight: 52g ±2g (with protective caps)
- Dimensions: 28mm(L) × 24mm(W) × 24mm(H) (body only)
- Seal Material: Fluororubber (FKM) O-rings
- Vibration Resistance: 10-55Hz @ 1.5mm amplitude
- IP Rating: IP40 (protected port configuration)
Triple-ported flow divider with corrosion-resistant nickel plating and color-coded port caps (blue/black). Features dual-thread compatibility for global applications and 360° rotatable branches for flexible piping alignment. Includes built-in strain relief grooves.
Typical Applications:
- Modular pneumatic manifolds in assembly lines
- Air supply distribution for CNC machine tools
- Sensor air purge systems
- Laboratory gas chromatography setups
- Robotic gripper pneumatic circuits
Installation note:
Apply 2-3Nm torque during assembly. Use thread sealant only on male threads.
Rotate branch arms before final tightening - alignment adjustments prohibited
after pressure testing.
| Property | Property Value |
|---|---|
| sku | X-APX1201 |
