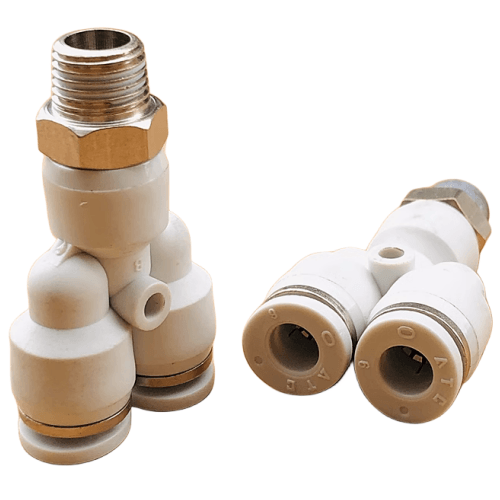

Airtac X-APX Adapter - Y-Type Threaded Tee X-APX401
AirTAC X-APX401 Y-Type Threaded Tee Specifications
- Model: X-APX401
- Type: Y-Threaded Tee (Equal Branch)
- Thread Standard: BSPP (G) / NPT optional
- Port Size: 1/8" (M5×0.8 metric thread available)
- Material: Brass with nickel plating (C3604)
- Seal Material: NBR (Nitrile) O-rings
- Max Pressure: 1.5 MPa (217 psi)
- Temperature Range: -5℃ to 80℃
- Surface Roughness: Ra ≤1.6μm (fluid contact surfaces)
- Leakage Rate: ≤3 bubbles/min (under 0.5 MPa pressure)
- Weight: 28g ±1g
- Dimensions: 25mm(L) × 25mm(W) × 20mm(H)
- Certification: RoHS compliant
Precision-machined pneumatic tee connector featuring zero-dead-volume design for minimal pressure drop. The 120° Y-configuration optimizes flow distribution while maintaining compact dimensions. Nickel plating provides corrosion resistance in humid environments. Compatible with air, inert gases, and vacuum systems.
- Branch line connections in pneumatic control panels
- Vacuum circuit distribution in pick-and-place machines
- Cooling air supply branching for CNC equipment
- Medical gas line manifolds
- Laboratory instrument pneumatic networks
Installation guide:
Apply 1.5-2 wraps of PTFE tape on male threads (for BSPP).
Tightening torque should not exceed 1.2N·m. Avoid thread sealants
containing silicone to prevent contamination.
| Property | Property Value |
|---|---|
| sku | X-APX401 |
