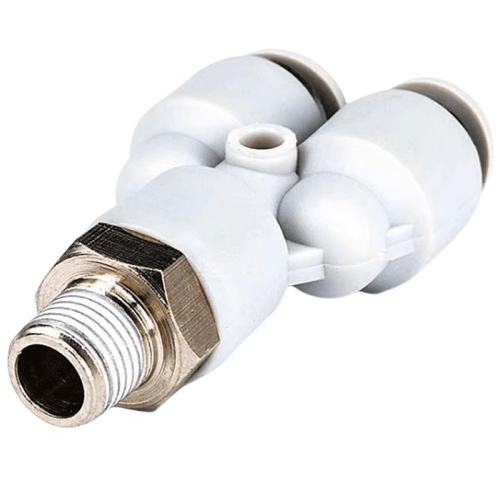

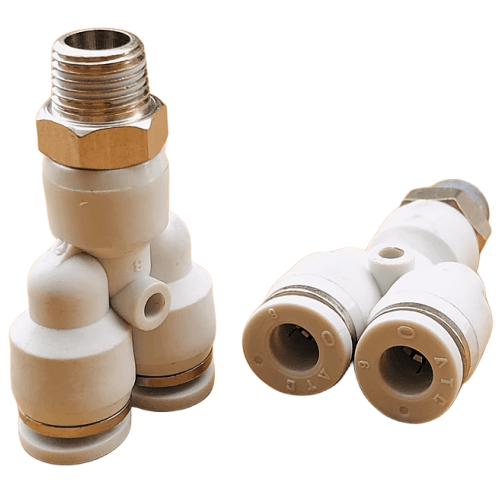

Airtac X-APX Adapter - Y-Type Threaded Tee X-APX603
AirTAC X-APX603 Y-Type Threaded Tee Fitting Specifications
- Model: X-APX603
- Type: Y-Type Threaded Tee (Equal Division)
- Thread Standard: BSPP (G Thread) / NPT optional
- Port Size: 1/8" (G1/8)
- Material: Brass (Nickel-plated) body with NBR seals
- Max Working Pressure: 1.0 MPa (145 psi)
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 28g ±1g
- Dimensions: 24mm (L) × 24mm (W) × 24mm (H)
- Flow Coefficient (Cv): 0.15
- Surface Treatment: Electroplated chromate coating
- Certifications: RoHS compliant, ISO 1179-1 standard
Precision-engineered pneumatic tee connector featuring 120° equal flow division for balanced pressure distribution. The corrosion-resistant nickel plating and cold-forged brass construction ensure leak-free performance in high-vibration environments. Designed with tool-free installation grooves for 10mm wrench operation.
- Branch line connections in robotic gripper systems
- Compressed air distribution in CNC machinery
- Vacuum system plumbing for automated packaging lines
- Coolant line splitting in semiconductor manufacturing equipment
- Modular pneumatic circuit prototyping
Installation note:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten to 12-15 N·m torque using backup wrench on hex flats.
Avoid overtightening which may distort NBR seals.
