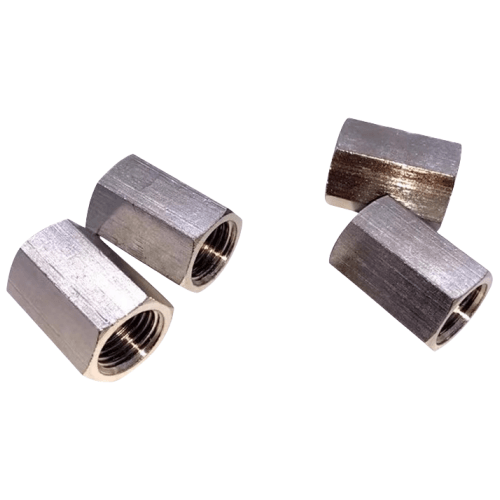

Airtac X-AUA Union - Female Thread Straight X-AUA01
AirTAC X-AUA01 Threaded Straight Fitting Technical Details
- Model: X-AUA01
- Type: Female threaded straight connector (BSPP/BSPT/NPT)
- Thread standards:
- BSPP (G): G1/8, G1/4, G3/8, G1/2
- BSPT (R): R1/8, R1/4, R3/8, R1/2
- NPT: NPT1/8, NPT1/4, NPT3/8, NPT1/2
- Material: Lead-free brass (CuZn39Pb0.5) with nickel plating
- Surface hardness: ≥HV300
- Pressure rating: 0-1.0 MPa (1-10 bar)
- Temperature range: -20℃ to 80℃ (continuous use)
- Seal type: Metal-to-metal sealing with optional O-ring (NBR/FKM)
- Torque resistance: ≤35 N·m (for G1/2 size)
- Weight: 24g ±0.5g (G1/8 size)
- Dimensions (G1/8):
- Total length: 38mm
- Thread length: 10mm
- Hex size: 12mm
- Outer diameter: 14.5mm
- Corrosion resistance: 96hrs neutral salt spray test
Precision-machined straight connector featuring triple-sealing design (thread+taper+O-ring) for leak-free performance in high-vibration environments. The electroless nickel plating provides superior corrosion resistance against water, weak acids, and hydraulic oils. Internal flow path optimized for minimal pressure drop (ΔP <0.02MPa @10L/min).
- Pneumatic tool air supply lines
- CNC machine coolant system connections
- Hydraulic test bench manifolds
- Food processing equipment (FDA-compliant O-ring versions)
- Semiconductor fab gas distribution
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads. Hand-tighten first,
then torque to 12-15 N·m using a calibrated wrench. Avoid cross-threading -
ensure perfect alignment before applying rotational force.
| Property | Property Value |
|---|---|
| sku | X-AUA01 |
